TBA23-12SURKCGKWA - Kingbright

Description: Dot Matrix Display 8x8 58mm Red/Green, TU

Download TBA23-12SURKCGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

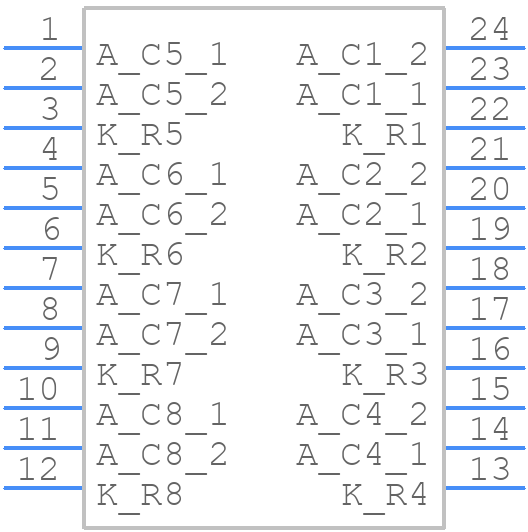

TBA23-12SURKCGKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

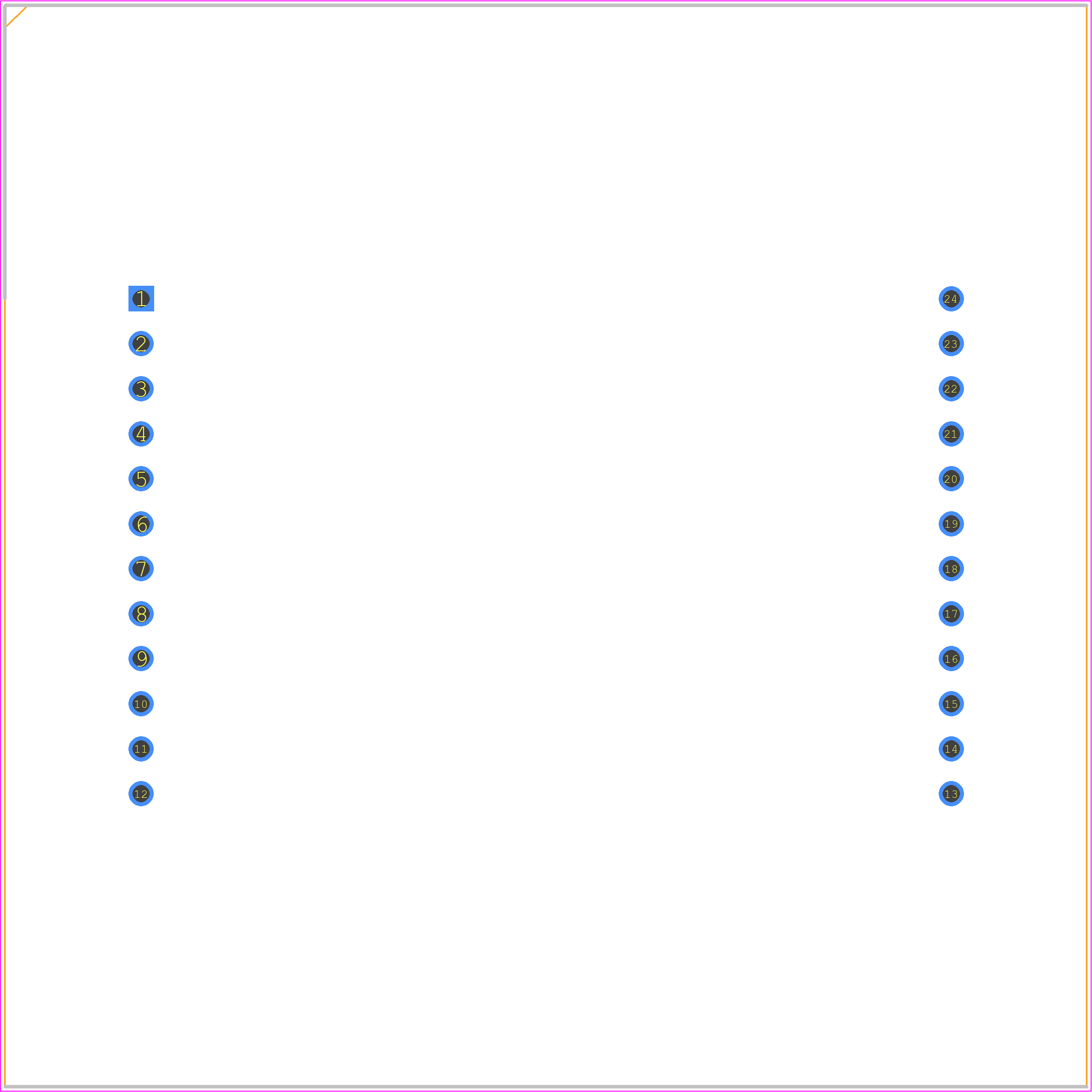

TBA23-12SURKCGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-24
click to zoom

TBA23-12SURKCGKWA Details

  • Manufacturer Part Number:

    TBA23-12SURKCGKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-24

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.37

  • Color:

    HYPER RED/GREEN

  • Color@Wavelength:

    Red/Green-yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT

  • Display Height:

    58.34 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    8 X 8 DOT MATRIX LED DISPLAY

TBA23-12SURKCGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for TBA23-12SURKCGKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the TBA23-12SURKCGKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for the TBA23-12SURKCGKWA is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the component.
  • Yes, the TBA23-12SURKCGKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical lifespan of the TBA23-12SURKCGKWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current.
