TBC20-11EGWA - Kingbright

Description: LED Displays & Accessories RED/GREEN DIFFUSED 5X7 DOT MATRIX

Download TBC20-11EGWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

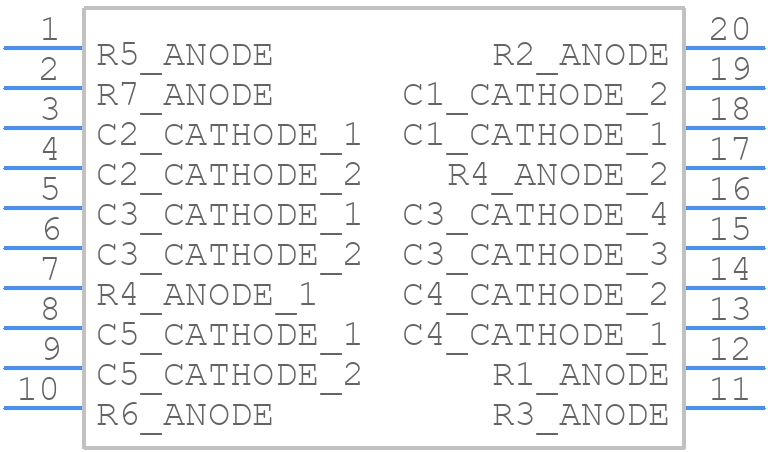

TBC20-11EGWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

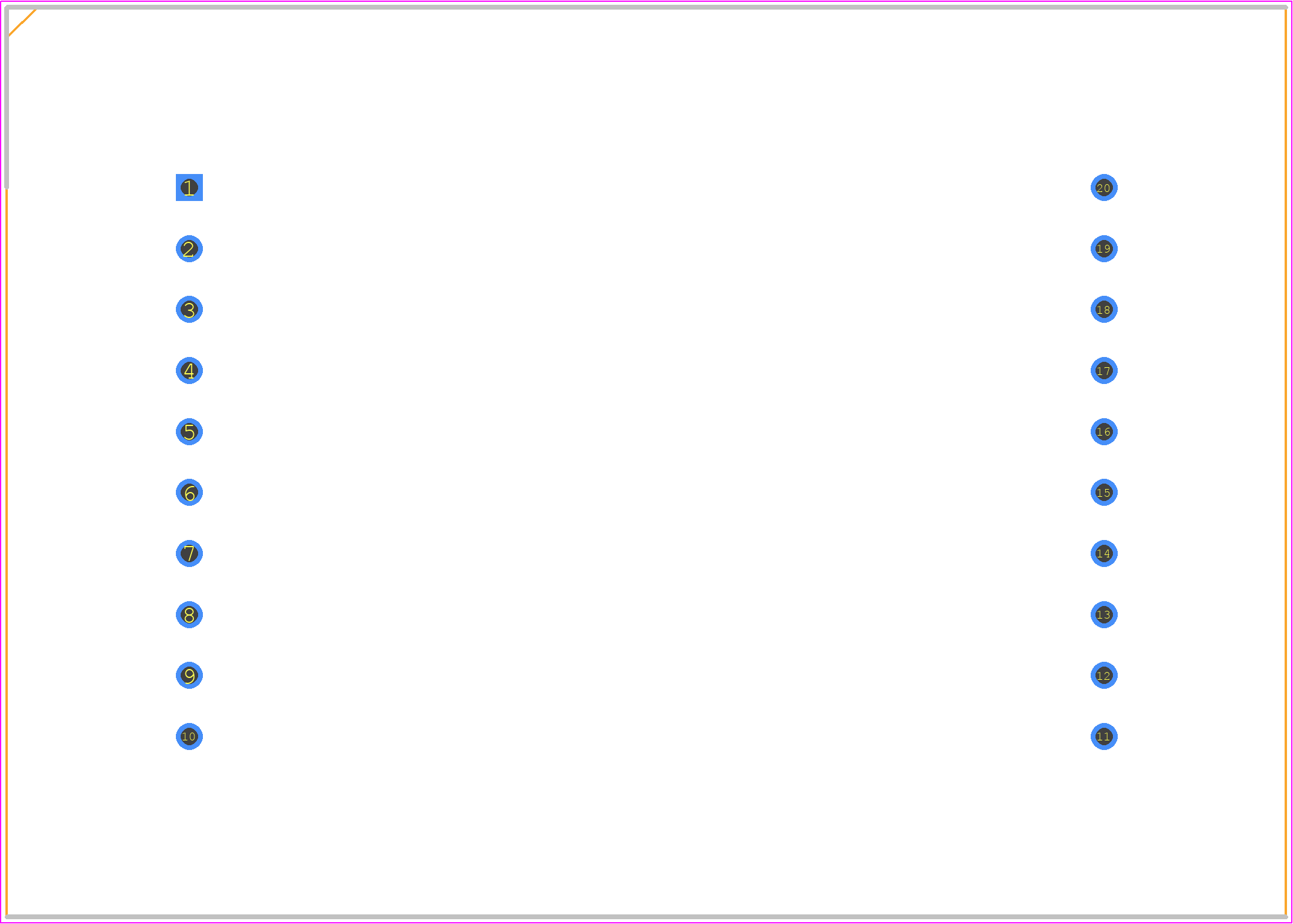

TBC20-11EGWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 50mm (2.0 INCH) 5x7 DOT MATRIX DISPLAY
click to zoom

TBC20-11EGWA Details

  • Manufacturer Part Number:

    TBC20-11EGWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.1

  • Color:

    HIGH EFFICIENCY RED/GREEN

  • Color@Wavelength:

    Green/Orange

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    50.72 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

TBC20-11EGWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for TBC20-11EGWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • While TBC20-11EGWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for TBC20-11EGWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, TBC20-11EGWA is compatible with lead-free soldering processes, but the soldering profile should be adjusted according to the manufacturer's recommendations.
  • The typical lifespan of TBC20-11EGWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TBC20-11EGWA Overview

Use the download button to access the TBC20-11EGWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TBC20, or try a keyword search, such as LED Displays
