TC07-11SURKWA - Kingbright

Description: Kingbright TC07-11SURKWA Dot Matrix LED Display, CC 7 x 5 Dot Matrix Red 90 mcd 17.2mm

Download TC07-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

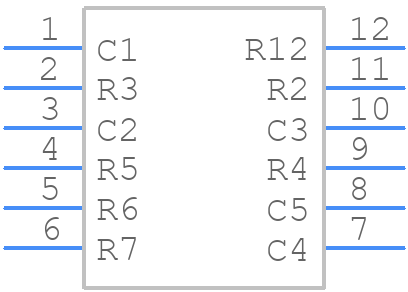

TC07-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

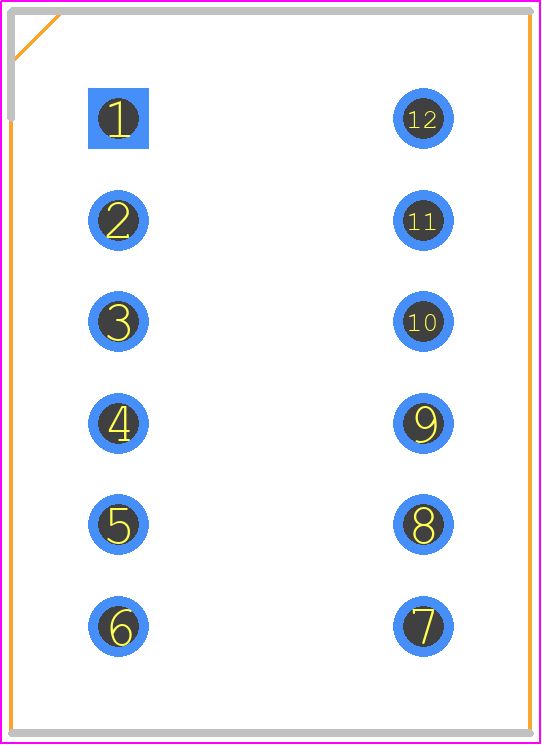

TC07-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18mm (0.7INCH) SINGLE COLOR DOT MATRIX DISPLAY
click to zoom
3D Models
TC07-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - 18mm (0.7INCH) SINGLE COLOR DOT MATRIX DISPLAY
click to zoom

TC07-11SURKWA Details

  • Manufacturer Part Number:

    TC07-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.1

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    17.78 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

TC07-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the TC07-11SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the TC07-11SURKWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect it from environmental factors such as moisture, dust, and UV radiation.
  • The maximum soldering temperature for the TC07-11SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, the TC07-11SURKWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliability and performance.
  • The typical lifespan of the TC07-11SURKWA is 50,000 hours or more, depending on the operating conditions and environmental factors.
