TC07-11YWA - Kingbright

Description: LED Displays & Accessories Dot Matrix Yel 588nm Common Cathode

Download TC07-11YWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

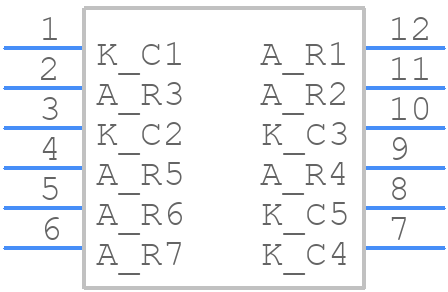

TC07-11YWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

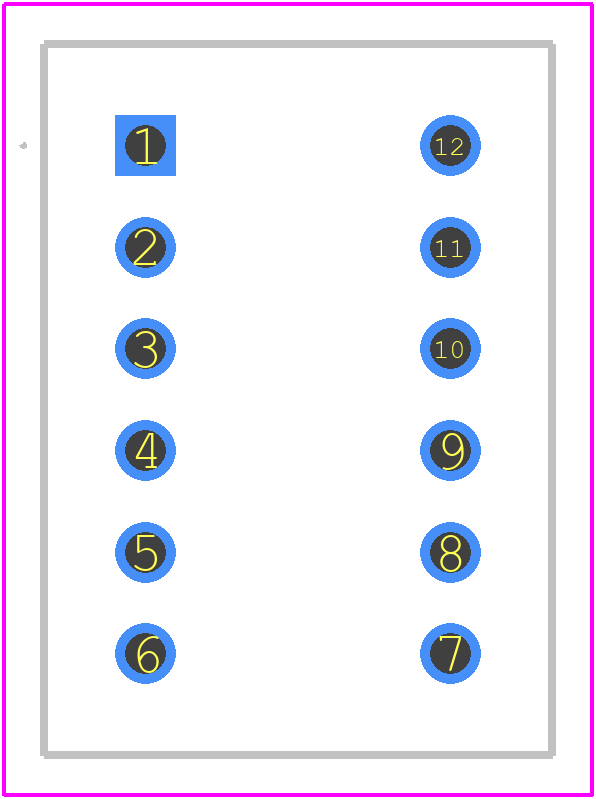

TC07-11YWA - Kingbright PCB footprint - Other - Other - TC07-11YWA-5
click to zoom
3D Models
TC07-11YWA - Kingbright - 3D model - Other - TC07-11YWA-5
click to zoom

TC07-11YWA Details

  • Manufacturer Part Number:

    TC07-11YWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.1

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    17.24 mm

  • Forward Current-Max:

    0.03 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    590 nm

TC07-11YWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for TC07-11YWA LEDs is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, the TC07-11YWA LED is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for the TC07-11YWA LED is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the LED.
  • Yes, the TC07-11YWA LED is compatible with lead-free soldering, but it's crucial to follow the recommended soldering profile and temperature to ensure reliable connections.
  • The typical lifespan of the TC07-11YWA LED is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current.
