TC12-11EWA - Kingbright

Description: LED Displays & Accessories Dot Matrix Red 625nm Common Cathode

Download TC12-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

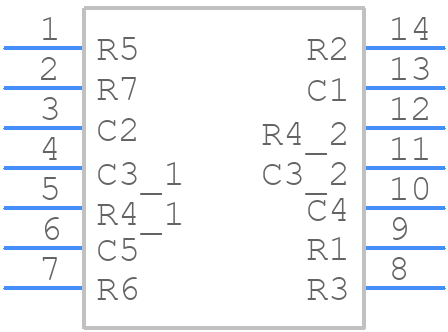

TC12-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

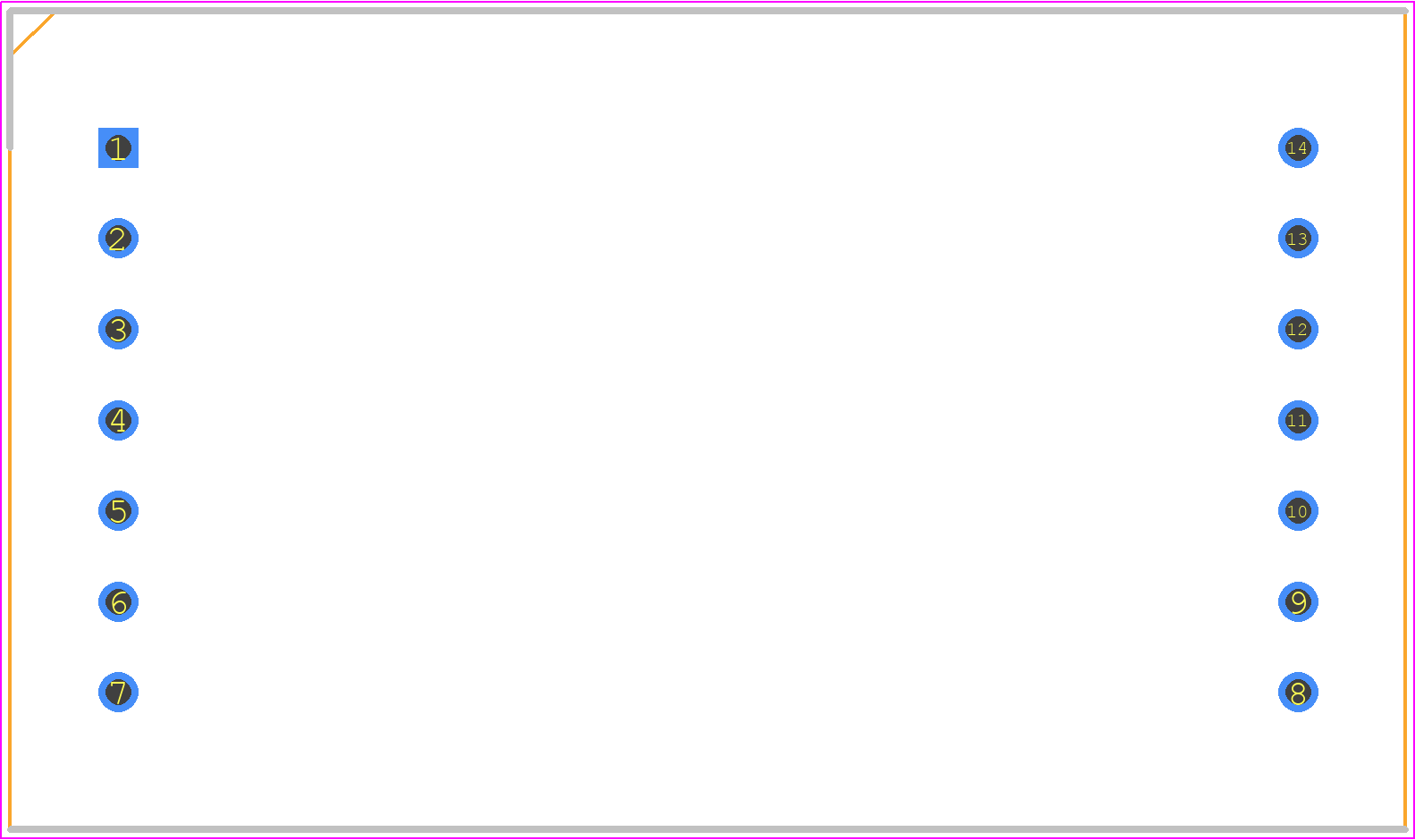

TC12-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 30.6mm 5x7 DOT MATRIX DISPLAY
click to zoom

TC12-11EWA Details

  • Manufacturer Part Number:

    TC12-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-14

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.1

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    30 mm

  • Forward Current-Max:

    0.03 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    625 nm

TC12-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for TC12-11EWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the TC12-11EWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for TC12-11EWA is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the component.
  • Yes, the TC12-11EWA is compatible with lead-free soldering, but it's crucial to follow the recommended soldering profile and temperature to ensure reliable connections.
  • The typical lifespan of the TC12-11EWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC12-11EWA Overview

Use the download button to access the TC12-11EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TC12-, or try a keyword search, such as LED Displays
