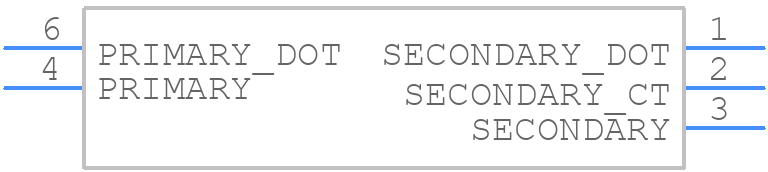

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-1TG2+ - Mini-Circuits PCB footprint - Other - Other - TC4-1TG2+-1
click to zoom
3D Models
TC4-1TG2+ - Mini-Circuits  - 3D model - Other - TC4-1TG2+-1
click to zoom

TC4-1TG2+ Details

  • Manufacturer Part Number:

    TC4-1TG2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e4

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1TG2+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC4-1TG2+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The TC4-1TG2+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • While the TC4-1TG2+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device may not be optimized for high-frequency switching, and the switching frequency should be limited to 100 kHz or less to avoid overheating and ensure reliable operation.
  • Common issues with the TC4-1TG2+ include overheating, oscillation, and poor gain flatness. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure proper heat sinking, and verify that the device is operated within its recommended specifications.
