TC648BEOA713 - Microchip

Description: Motor / Motion / Ignition Controllers & Drivers Shtdn & Over-T Alert

Download TC648BEOA713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

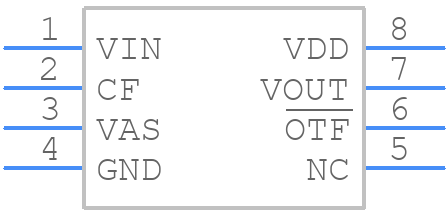

Symbol
TC648BEOA713 - Microchip - PCB symbol
click to zoom
PCB Footprints
TC648BEOA713 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (OA)8-Lead(SOIC)
click to zoom
3D Models
TC648BEOA713 - Microchip - 3D model - Small Outline Packages - (OA)8-Lead(SOIC)
click to zoom

TC648BEOA713 Details

  • Manufacturer Part Number:

    TC648BEOA713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    AC SERVO MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

TC648BEOA713 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC648BEOA713 is 2.7V to 5.5V, although it can operate down to 2.3V with reduced performance.
  • The TC648BEOA713 can be configured for a specific frequency output by setting the appropriate values for the RSET pin, the oscillator capacitor (COSC), and the oscillator resistor (ROSC). Refer to the datasheet for the calculation formulas and examples.
  • The maximum output current of the TC648BEOA713 is 20mA, although it's recommended to limit the output current to 10mA for reliable operation.
  • Yes, the TC648BEOA713 can be used as a clock source for multiple devices, but it's essential to ensure that the output current is within the recommended limits and that the clock signal is properly buffered or isolated to prevent signal degradation.
  • To troubleshoot issues with the TC648BEOA713, check the power supply voltage, ensure proper connections and component values, and verify that the oscillator circuit is correctly configured. Also, consult the datasheet and application notes for troubleshooting guidelines and tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC648BEOA713 Overview

Use the download button to access the TC648BEOA713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC648, or try a keyword search, such as Motion Control Electronics
