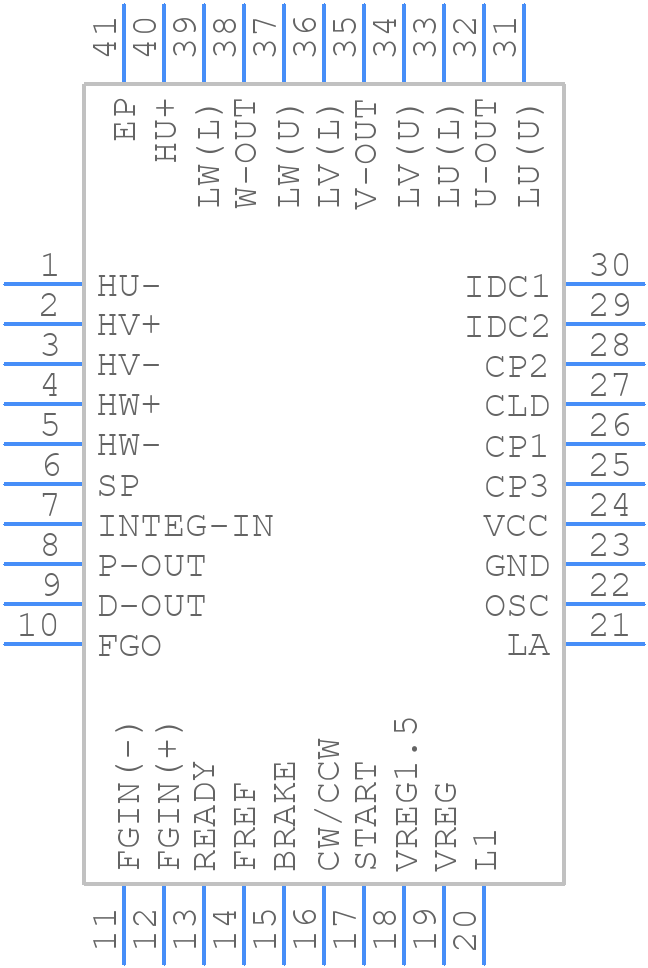

TC78B004AFTG,EL - Toshiba

TC78B004AFTG,EL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the top and bottom layers to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal pad.
• How do I select the correct input capacitor for this driver?
  The input capacitor should be selected based on the input voltage ripple, output current, and switching frequency. A general rule of thumb is to use a capacitor with a capacitance value of 10uF to 22uF, and a voltage rating of 25V to 50V, depending on the specific application requirements.
• What is the maximum allowable voltage on the VCC pin?
  The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a Zener diode to regulate the voltage and ensure it remains within the specified range.
• How do I implement overcurrent protection with this driver?
  The TC78B004AFTG,EL has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and ground. The driver will detect the current flowing through the sense resistor and limit the output current to prevent damage. The recommended sense resistor value is 0.1 ohms to 1 ohm, depending on the application requirements.
• What is the recommended operating temperature range for this driver?
  The recommended operating temperature range for the TC78B004AFTG,EL is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
