TC78B027FTG,EL - Toshiba

Description: Motor / Motion / Ignition Controllers & Drivers 18V 3-Phase BLDC

Download TC78B027FTG,EL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

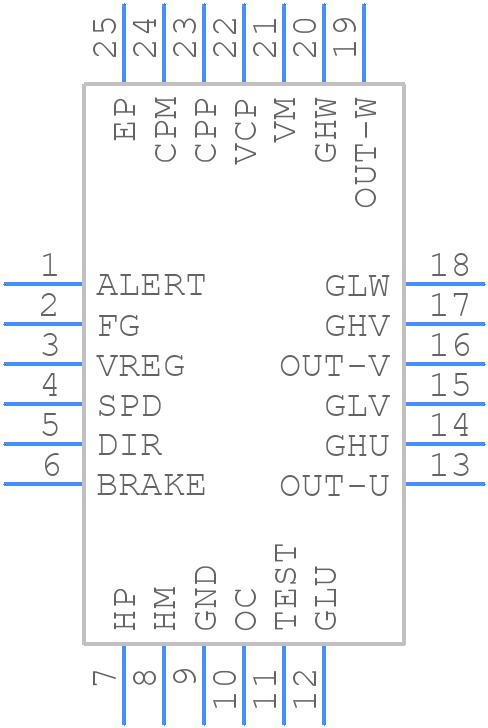

PCB Footprints
TC78B027FTG,EL - Toshiba PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN24-0404
click to zoom
3D Models
TC78B027FTG,EL - Toshiba  - 3D model - Quad Flat No-Lead - VQFN24-0404
click to zoom

TC78B027FTG,EL Details

  • Manufacturer Part Number:

    TC78B027FTG,EL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.25

  • Additional Feature:

    IT ALSO HAS 5TO 9 10.8 TO 16 V SUPPLY

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.15SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    12.5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

TC78B027FTG,EL Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the top and bottom layers to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Choose an input capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is recommended.
  • The maximum allowable voltage on the VCC pin is 27V, but it's recommended to keep it below 25V to ensure reliable operation and prevent damage to the internal circuitry.
  • Yes, the TC78B027FTG,EL is compatible with 3.3V and 5V logic levels. However, ensure that the microcontroller's output can drive the driver's input pin, and consider adding a buffer or level shifter if necessary.
  • Check the input voltage, output voltage, and current. Verify that the enable pin is properly driven and that the input signals are within the recommended logic levels. Use an oscilloscope to monitor the output waveform and check for any signs of overheating.
