TC78B041FNG,EL - Toshiba

Description: Motor / Motion / Ignition Controllers & Drivers Brushless MCD 2mA 6V -40C to +115C

Download TC78B041FNG,EL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

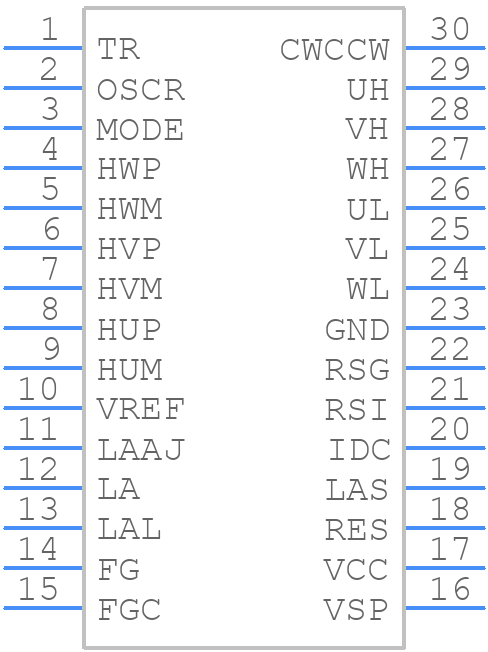

TC78B041FNG,EL - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC78B041FNG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP30
click to zoom
3D Models
TC78B041FNG,EL - Toshiba - 3D model - Small Outline Packages - SSOP30
click to zoom

TC78B041FNG,EL Details

  • Manufacturer Part Number:

    TC78B041FNG,EL

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP16,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.6 mm

TC78B041FNG,EL Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Choose an input capacitor with a voltage rating of at least 25V, a capacitance value of 10uF to 100uF, and an ESR of less than 100mΩ. X5R or X7R ceramic capacitors are recommended.
  • The maximum allowable voltage drop across the internal FETs is 1.5V. Exceeding this value may reduce the driver's efficiency and increase heat generation.
  • No, the TC78B041FNG,EL is designed for brushed DC motors only. Using it with a brushless DC motor may result in incorrect motor rotation, vibration, or damage to the driver.
  • Implement overcurrent protection using an external current sense resistor and a comparator or a dedicated overcurrent protection IC. The motor driver also has a built-in overcurrent detection circuit that can be used to trigger an external protection circuit.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC78B041FNG,EL Overview

Use the download button to access the TC78B041FNG,EL schematic symbol, PCB footprint, and 3D model.
