TCA5013ZAHR - Texas Instruments

Description: Smart Card Interface IC for 1 User Card + 3 SAMs

Download TCA5013ZAHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

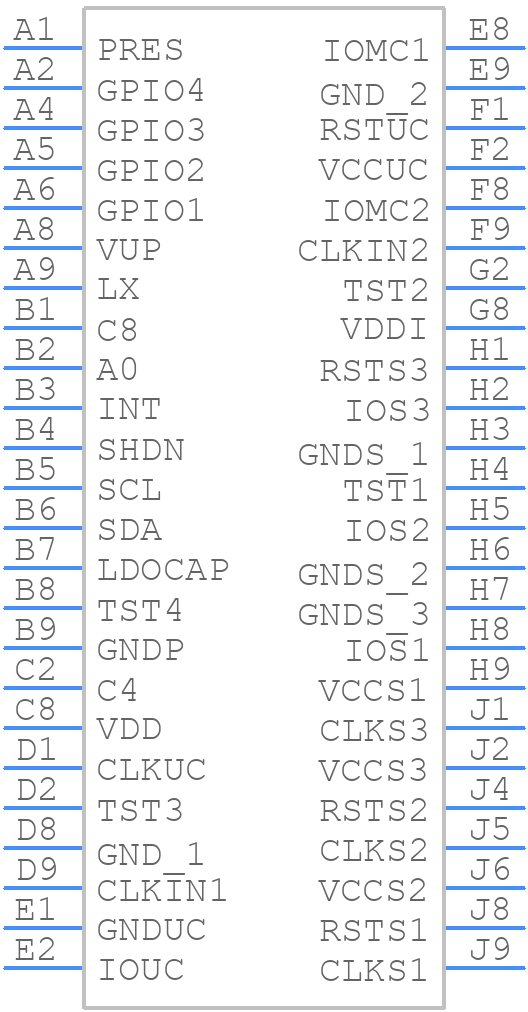

TCA5013ZAHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA5013ZAHR - Texas Instruments PCB footprint - BGA - BGA - TCA5013ZAHR
click to zoom
3D Models
TCA5013ZAHR - Texas Instruments - 3D model - BGA - TCA5013ZAHR
click to zoom

TCA5013ZAHR Details

  • Manufacturer Part Number:

    TCA5013ZAHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TCA5013ZAHR Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding topology, keep analog and digital grounds separate, and use a solid ground plane to minimize EMI and noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • The TCA5013ZAHR requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it is recommended to power up the device after the power supply has stabilized.
  • The TCA5013ZAHR can drive up to 100pF of capacitive load. Exceeding this limit may affect the device's stability and performance.
  • The TCA5013ZAHR has a built-in fault detection mechanism that can be enabled through the FLT pin. Connect the FLT pin to a GPIO pin and monitor it for fault detection. You can also implement a software-based fault detection mechanism by monitoring the device's output and detecting anomalies.
  • The recommended operating temperature range for the TCA5013ZAHR is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCA5013ZAHR Overview

Use the download button to access the TCA5013ZAHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA50, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
