Texas Instruments provides a recommended PCB layout in the application note SLVAE73, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Texas Instruments recommends using a CAN bus analyzer tool, such as the CAN Bus Analyzer Tool (CANBAT), to troubleshoot communication issues. Additionally, checking the device's error counters, monitoring the bus voltage, and verifying the termination resistors can help identify the root cause of the issue.
The maximum cable length supported by the TCAN1043HDMTTQ1 depends on the specific application and the type of cable used. However, as a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters (131.2 feet) for a single segment. Longer cable lengths may require the use of repeaters or other signal conditioning devices.
To ensure EMC with the TCAN1043HDMTTQ1, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and implement filtering and decoupling capacitors as recommended in the datasheet. Additionally, consider using a common-mode choke or other EMI filtering devices to reduce electromagnetic radiation.
The TCAN1043HDMTTQ1 has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1043HDMTTQ1 Overview

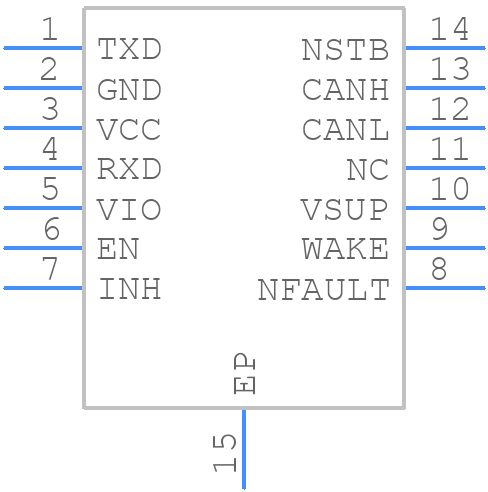

Use the download button to access the TCAN1043HDMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
