TCAN1044ADRBRQ1 - Texas Instruments

Description: The TCAN1044A-Q1 and TCAN1044AV-Q1 are high speed controller area network (CAN) transceivers that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification.

Download TCAN1044ADRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

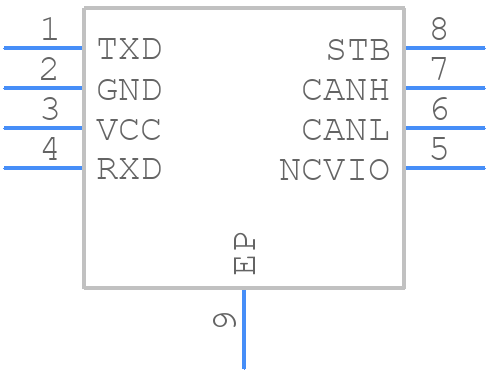

Symbol
TCAN1044ADRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1044ADRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
TCAN1044ADRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

TCAN1044ADRBRQ1 Details

  • Manufacturer Part Number:

    TCAN1044ADRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ESD Value for CANH, CANL wrt GND is 3B

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TCAN1044ADRBRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1044ADRQ1 is approximately 40 meters, depending on the specific application and environment.
  • The TCAN1044ADRBRQ1 is a CAN transceiver, and the configuration for a specific CAN bus protocol is typically done through the microcontroller or device connected to the transceiver. The datasheet provides information on the pinouts and electrical characteristics, but the protocol configuration is dependent on the specific application and device.
  • The power consumption of the TCAN1044ADRBRQ1 is typically around 70mA in normal operation, but this can vary depending on the specific application, bus load, and operating conditions. The datasheet provides more detailed information on power consumption under different scenarios.
  • Yes, the TCAN1044ADRBRQ1 is compatible with ISO 11898-2 and SAE J2284, which are common standards for CAN bus protocols.
  • The TCAN1044ADRBRQ1 supports data rates up to 1 Mbps, which is a common speed for many CAN bus applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1044ADRBRQ1 Overview

Use the download button to access the TCAN1044ADRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces
