TCAN1051GDQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1051GDQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

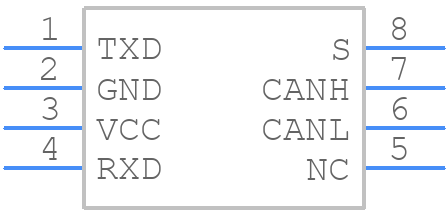

TCAN1051GDQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1051GDQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008B
click to zoom
3D Models
TCAN1051GDQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008B
click to zoom

TCAN1051GDQ1 Details

  • Manufacturer Part Number:

    TCAN1051GDQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-03-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1051GDQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1051GDQ1 is 40 meters, assuming a transmission rate of 1 Mbps and a cable capacitance of 100 pF/m.
  • The TCAN1051GDQ1 is a CAN transceiver and does not require configuration for a specific CAN bus protocol. It is compatible with all CAN protocols, including CAN 2.0A, CAN 2.0B, and CAN FD.
  • The minimum input voltage required for the TCAN1051GDQ1 to operate is 4.5 V, although it is recommended to operate the device at a minimum of 4.75 V to ensure reliable operation.
  • Yes, the TCAN1051GDQ1 can be used in a multi-master CAN bus configuration. It is designed to support multiple transmitters on the same bus, and it has built-in protection against bus faults and errors.
  • To troubleshoot CAN bus errors with the TCAN1051GDQ1, use a CAN bus analyzer to monitor the bus traffic and identify the source of the error. Check for common issues such as bus termination, cable faults, and incorrect configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1051GDQ1 Overview

Use the download button to access the TCAN1051GDQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
