TCAN1051HD - Texas Instruments

Description: Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1051HD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

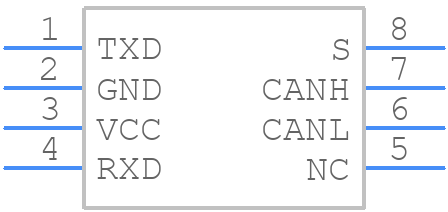

Symbol
TCAN1051HD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1051HD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TCAN1051HD - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TCAN1051HD Details

  • Manufacturer Part Number:

    TCAN1051HD

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-03-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1051HD Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1051HD is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
  • To ensure EMC, follow proper PCB layout guidelines, use a common-mode choke, and add EMI filters to the CAN bus lines. Additionally, ensure that the device is properly shielded and grounded.
  • The recommended termination scheme for the TCAN1051HD is a 120-ohm resistor at each end of the CAN bus, with a common-mode choke in series with the resistor.
  • The TCAN1051HD has built-in error detection and fault handling mechanisms. Use the device's error counters and status registers to detect and respond to bus faults, and implement a fault-tolerant communication protocol to ensure reliable data transmission.
  • The TCAN1051HD supports data rates up to 1 Mbps, making it suitable for high-speed CAN applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1051HD Overview

Use the download button to access the TCAN1051HD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
