Texas Instruments provides a recommended layout and routing guide in their application note SLVAE67, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN1051HGD is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the TCAN1051HGD. The specific configuration will depend on the protocol requirements and the microcontroller or SoC used.
The maximum cable length supported by the TCAN1051HGD depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment, but this can be extended using repeaters or bridges. The TCAN1051HGD can support longer cable lengths with proper system design and termination.
Troubleshooting CAN bus communication issues with the TCAN1051HGD typically involves checking the physical connection, signal integrity, and protocol configuration. Use a CAN bus analyzer or oscilloscope to monitor the bus signals and identify errors or anomalies. Check the microcontroller or SoC configuration, and ensure that the TCAN1051HGD is properly configured and terminated.
Yes, the TCAN1051HGD is designed to operate over an extended temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications. However, it's essential to ensure that the system design and components can also operate within the same temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1051HGD Overview

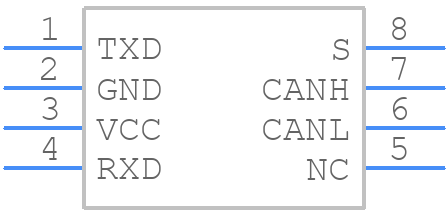

Use the download button to access the TCAN1051HGD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
