The maximum cable length supported by the TCAN1057ADRBRQ1 is dependent on the specific application and the characteristics of the cable. However, as a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters. Longer cable lengths may be possible with the use of repeaters or other signal conditioning devices.
The TCAN1057ADRBRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and ISO 11898-2. To configure the device for a specific protocol, you need to set the appropriate registers and pins according to the protocol requirements. Refer to the datasheet and the specific protocol specification for more information.
The power consumption of the TCAN1057ADRBRQ1 depends on the operating mode and the supply voltage. According to the datasheet, the typical power consumption is around 10 mA in normal mode and 1 μA in standby mode. However, the actual power consumption may vary depending on the specific application and operating conditions.
To troubleshoot CAN bus communication issues with the TCAN1057ADRBRQ1, you can use various tools and techniques, such as CAN bus analyzers, oscilloscopes, and logic analyzers. Check the CAN bus signal integrity, bit rate, and protocol compliance. Also, verify that the device is properly configured and that there are no bus conflicts or errors.
The TCAN1057ADRBRQ1 is a CAN transceiver that is compatible with other CAN transceivers that comply with the CAN bus specification. However, it's essential to ensure that the specific transceiver is compatible with the TCAN1057ADRBRQ1 in terms of pinout, voltage levels, and protocol support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1057ADRBRQ1 Overview

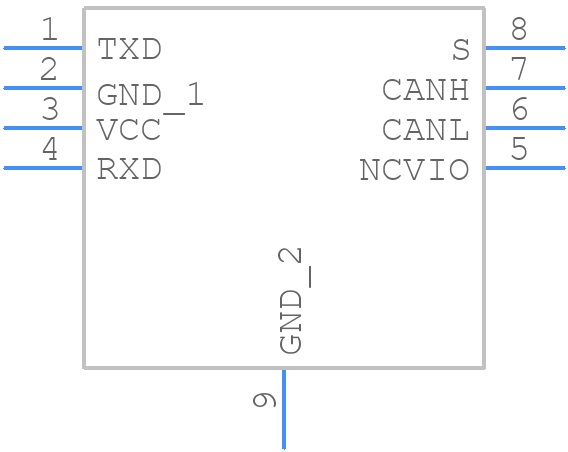

Use the download button to access the TCAN1057ADRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
