Texas Instruments recommends following the layout and routing guidelines in the application note 'CAN Transceiver Layout and Routing Guidelines' (SLAA701). This includes keeping the transceiver close to the CAN bus connector, using a ground plane, and minimizing trace lengths and loops.
The TCAN1144DYYRQ1 requires a 120-ohm termination resistor at each end of the CAN bus. The termination resistors should be placed as close as possible to the CAN bus connectors, and the bus should be terminated at both ends to prevent signal reflections.
The maximum cable length supported by the TCAN1144DYYRQ1 depends on the specific application and the type of cable used. However, as a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters (131.2 feet) for a 1-Mbps data rate.
The TCAN1144DYYRQ1 has built-in fault detection and error reporting capabilities. The device can detect bus faults such as short circuits, open circuits, and overvoltage conditions. The device also provides error flags and interrupts to notify the microcontroller of any errors or faults on the bus.
The power consumption of the TCAN1144DYYRQ1 depends on the operating mode and the bus load. In normal operation, the device consumes around 10-15 mA. To reduce power consumption, the device can be put into standby mode, which reduces the current consumption to around 10-20 μA. Additionally, the device can be powered down completely when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1144DYYRQ1 Overview

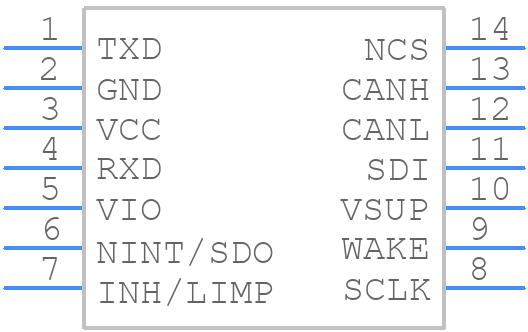

Use the download button to access the TCAN1144DYYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
