Part Image

TCAN330GDCNR - Texas Instruments

Description: 3.3-V CAN Transceivers with CAN FD (Flexible Data Rate)

Download TCAN330GDCNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

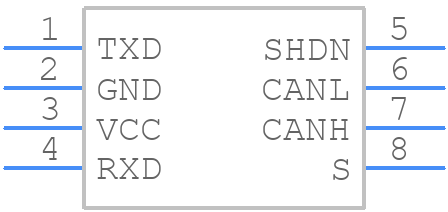

Symbol
TCAN330GDCNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN330GDCNR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN(R-PDSO-G8)2021
click to zoom
3D Models
TCAN330GDCNR - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN(R-PDSO-G8)2021
click to zoom

TCAN330GDCNR Details

  • Manufacturer Part Number:

    TCAN330GDCNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TCAN330GDCNR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN330GDCNR is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • The TCAN330GDCNR is a CAN transceiver and does not require configuration for a specific CAN bus protocol. However, the microcontroller or external device connected to the TCAN330GDCNR may require configuration for the specific CAN bus protocol being used.
  • The TCAN330GDCNR supports data rates up to 1 Mbps, which is the maximum data rate specified by the ISO 11898-2 standard for CAN FD.
  • Yes, the TCAN330GDCNR is compatible with CAN FD (Flexible Data Rate) and supports data rates up to 5 Mbps, as well as the longer payload lengths and improved error detection and correction mechanisms specified by the CAN FD standard.
  • The power consumption of the TCAN330GDCNR depends on the operating mode and the voltage supply. In normal operation, the typical current consumption is around 10 mA at 3.3 V, and in sleep mode, the typical current consumption is around 10 μA at 3.3 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN330GDCNR Overview

Use the download button to access the TCAN330GDCNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
