TCAN330GDCNT - Texas Instruments

Description: 3.3-V CAN Transceivers with CAN FD (Flexible Data Rate)

Download TCAN330GDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

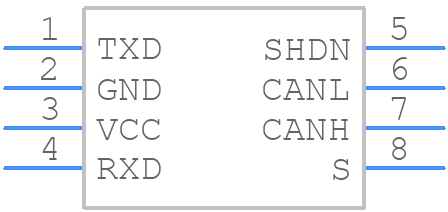

TCAN330GDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN330GDCNT - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - sot dcn
click to zoom
3D Models
TCAN330GDCNT - Texas Instruments - 3D model - SOT23 (8-Pin) - sot dcn
click to zoom

TCAN330GDCNT Details

  • Manufacturer Part Number:

    TCAN330GDCNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TCAN330GDCNT Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN330GDCNT is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
  • The TCAN330GDCNT can be configured for a specific CAN bus speed by setting the SCL pin to the desired frequency using an external resistor and capacitor. The datasheet provides a table to select the correct values for the desired bus speed.
  • The TCAN330GDCNT supports up to 110 nodes on a single CAN bus, assuming a 120-ohm twisted-pair cable and a maximum bus length of 40 meters.
  • The TCAN330GDCNT has built-in fault-tolerant features, including bus fault detection, error detection, and automatic bus recovery. It also provides a fault output pin to indicate bus faults and errors.
  • Yes, the TCAN330GDCNT can be used in a multi-master CAN bus configuration, where multiple masters can transmit data on the bus. The device supports non-destructive bit-wise arbitration to resolve bus conflicts.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN330GDCNT Overview

Use the download button to access the TCAN330GDCNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
