A good PCB layout for the TCAN4550RGYRQ1 involves keeping the CAN transceiver and the microcontroller close together, using a solid ground plane, and minimizing the length of the CAN bus lines. It's also recommended to use a common mode choke and a TVS diode for ESD protection.
The TCAN4550RGYRQ1 requires a stable power supply with a voltage range of 4.5V to 5.5V. It's recommended to use a 10uF capacitor for power decoupling and to place it as close as possible to the VCC pin. Additionally, a 100nF capacitor can be used for high-frequency decoupling.
The TCAN4550RGYRQ1 supports a maximum cable length of 40 meters for a single segment, and up to 1000 meters for a multi-segment bus. However, the actual cable length may vary depending on the specific application and the quality of the cables used.
To troubleshoot CAN bus communication issues, check the CAN bus voltage levels, ensure the correct termination resistors are used, and verify the CAN bus speed and bit rate. Also, use a CAN bus analyzer or a logic analyzer to monitor the CAN bus signals and identify any errors or issues.
The TCAN4550RGYRQ1 is a CAN FD transceiver that is compatible with other CAN FD transceivers. However, it's recommended to verify the compatibility of the TCAN4550RGYRQ1 with other transceivers in the specific application, as some transceivers may have different voltage levels or signal timing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN4550RGYRQ1 Overview

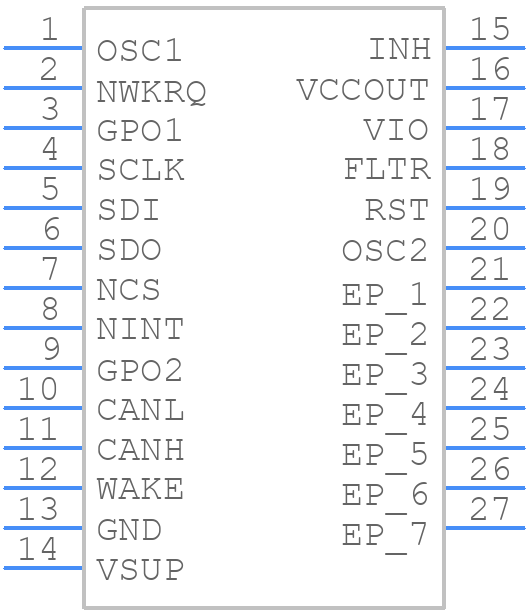

Use the download button to access the TCAN4550RGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN4,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
