TCB503HQ - Toshiba

Description: CDMOS Linear Integrated Circuit Silicon Monolithic Maximum Power 50 W BTL × 4ch Audio Power Amplifier IC

Download TCB503HQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

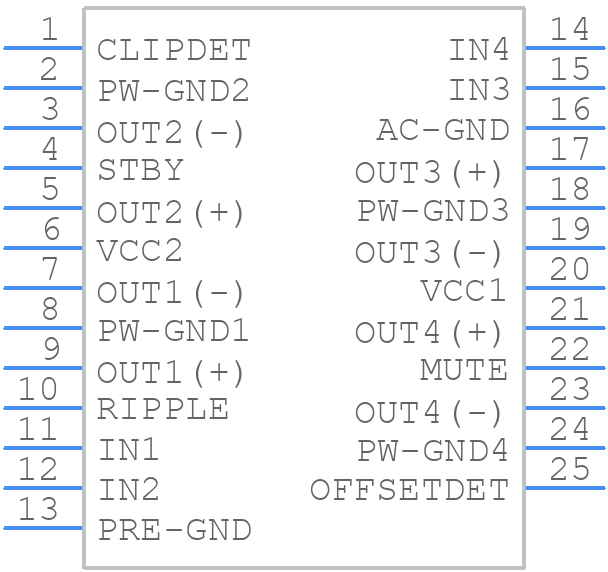

TCB503HQ - Toshiba - PCB symbol
click to zoom
PCB Footprints

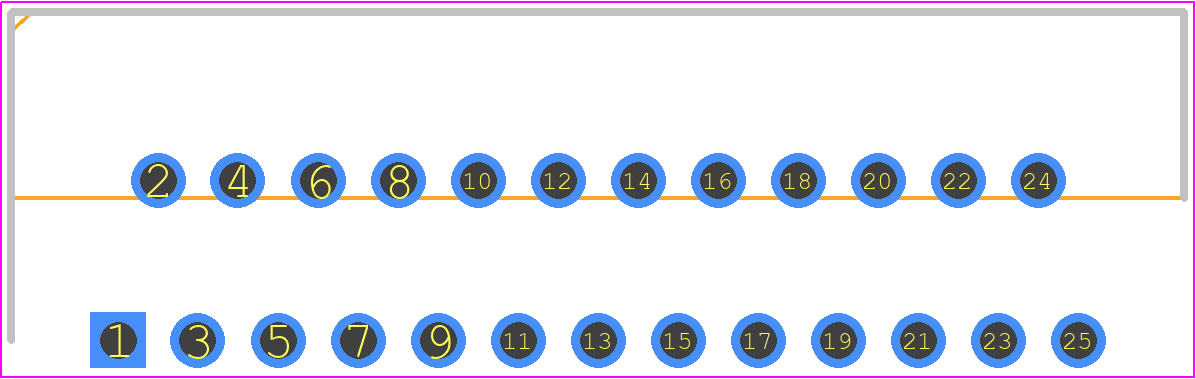

TCB503HQ - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - HZIP25-P-1.00F*-*
click to zoom
3D Models
TCB503HQ - Toshiba - 3D model - Transistor Outline, Vertical - HZIP25-P-1.00F*-*
click to zoom

TCB503HQ Details

  • Manufacturer Part Number:

    TCB503HQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.4

  • Consumer IC Type:

    AUDIO AMPLIFIER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCB503HQ Overview

Use the download button to access the TCB503HQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCB50, or try a keyword search, such as Audio/Video Amplifiers
