TCK1024G,LF - Toshiba

Description: Power Distribution Load Switch 1.54A 1.4V to 5.5V

Download TCK1024G,LF Model

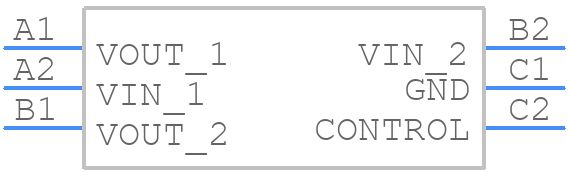

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCK1024G,LF - Toshiba PCB footprint - BGA - BGA - WCSP6E
click to zoom
3D Models
TCK1024G,LF - Toshiba  - 3D model - BGA - WCSP6E
click to zoom

TCK1024G,LF Details

  • Manufacturer Part Number:

    TCK1024G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:1.54A

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.4 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.77V

  • Width:

    0.8 mm

TCK1024G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane and thermal vias under the package to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring junction temperature.
  • Toshiba recommends soldering conditions of 260°C (peak temperature) for 10 seconds or less, with a soldering iron temperature of 350°C or less. It's also important to follow the recommended soldering profile and use a solder with a melting point above 217°C.
  • Yes, TCK1024G,LF is lead-free and RoHS compliant, making it suitable for lead-free soldering processes. However, it's essential to follow the recommended soldering conditions and profiles to ensure reliable operation.
  • To prevent damage, handle TCK1024G,LF by the package body only, avoiding touching the leads or die surface. Store the devices in their original packaging or in a dry, ESD-protected environment, away from direct sunlight and moisture.
