Part Image

TCK127BG - Toshiba

Description:  Wide input operation voltage range : VIN = 1.0 to 5.5 V  High output current : IOUT = 1.0 A  Ultra small quiescent current : IQ = 0.08 nA at VIN = VCT = 5.5 V, IOUT = 0 mA  Low ON resistance RON = 58 mΩ (typ.) at VIN = 3.3 V, IOUT = -0.5 A RON = 106 mΩ (typ.) at VIN = 1.8 V, IOUT = -0.5 A  Built in Slew rate control driver  Built in Auto-discharge  Active High  Ultra small package : WCSP4G with back side coating (0.645 mm x 0.645 mm, t: 0.465 mm max.)

Download TCK127BG Model

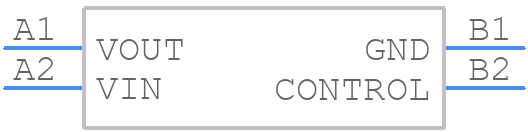

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCK127BG - Toshiba PCB footprint - BGA - BGA - WCSP4G
click to zoom
3D Models
TCK127BG - Toshiba  - 3D model - BGA - WCSP4G
click to zoom

TCK127BG Details

  • Manufacturer Part Number:

    TCK127BG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XBGA-B4

  • Length:

    0.645 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA4,2X2,14

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.465 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.645 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCK127BG Overview

Use the download button to access the TCK127BG schematic symbol, PCB footprint, and 3D model.
