TCK22971G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch 2.0A 1.1V to 5.5V

Download TCK22971G,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

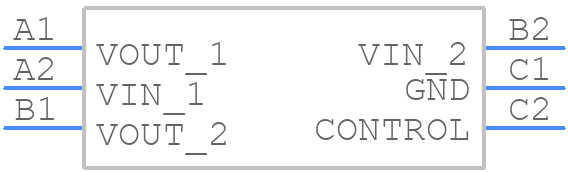

TCK22971G,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK22971G,LF - Toshiba PCB footprint - BGA - BGA - bga-6
click to zoom
3D Models
TCK22971G,LF - Toshiba - 3D model - BGA - bga-6
click to zoom

TCK22971G,LF Details

  • Manufacturer Part Number:

    TCK22971G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH
