TCK22974G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch 2.0A 1.1V to 5.5V

Download TCK22974G,LF Model

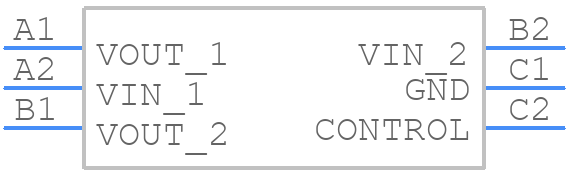

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCK22974G,LF - Toshiba PCB footprint - BGA - BGA - bga-6
click to zoom
3D Models
TCK22974G,LF - Toshiba  - 3D model - BGA - bga-6
click to zoom

TCK22974G,LF Details

  • Manufacturer Part Number:

    TCK22974G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

TCK22974G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or thermal management system, and ensure the device is operated within the recommended temperature range (TJ = -40°C to 150°C).
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • Yes, the TCK22974G,LF is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize EMI and noise.
  • Implement ESD protection measures such as TVS diodes, ESD filters, or ESD-resistant components to prevent damage from electrostatic discharge.
