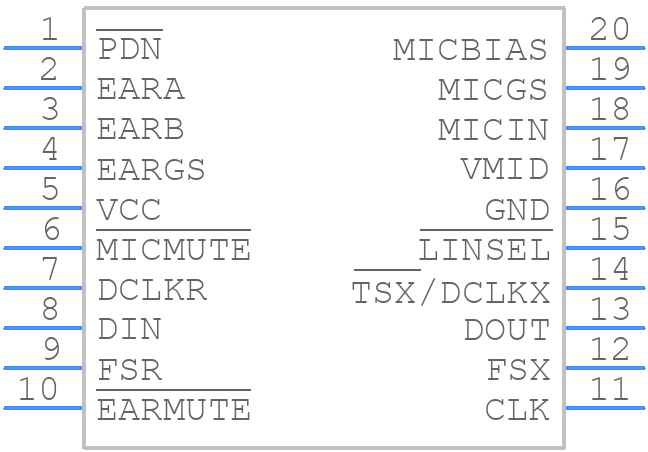

TCM320AC37CDW - Texas Instruments

TCM320AC37CDW Details

• Manufacturer Part Number:

  TCM320AC37CDW

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  PLASTIC, SO-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Companding Law:

  A-LAW

• Filter:

  YES

• Gain Tolerance-Max:

  1 dB

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Linear Coding:

  13-BIT

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Mode:

  SYNCHRONOUS/ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  7.5 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Telecom IC Type:

  PCM CODEC

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
