MORNSUN recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat effectively. A minimum of 2oz copper thickness is recommended. Additionally, keeping the PCB layer stack-up symmetrical and using thermal vias can help to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves for output power and input voltage. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce the junction temperature.
The maximum capacitance on the output depends on the specific application and the desired level of output voltage ripple. As a general guideline, MORNSUN recommends limiting the output capacitance to 10uF or less to avoid stability issues. However, it is essential to perform a thorough stability analysis for the specific application.
Yes, the TD301D232H can be used in a redundant or parallel configuration to achieve higher output power or redundancy. However, it is crucial to ensure that the devices are properly synchronized and that the output voltage is properly regulated to avoid oscillations or instability.
The recommended input fuse rating depends on the specific application and the maximum input current. As a general guideline, MORNSUN recommends using a fuse with a rating of 1.5 to 2 times the maximum input current to ensure reliable operation and protection against overcurrent faults.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TD301D232H Overview

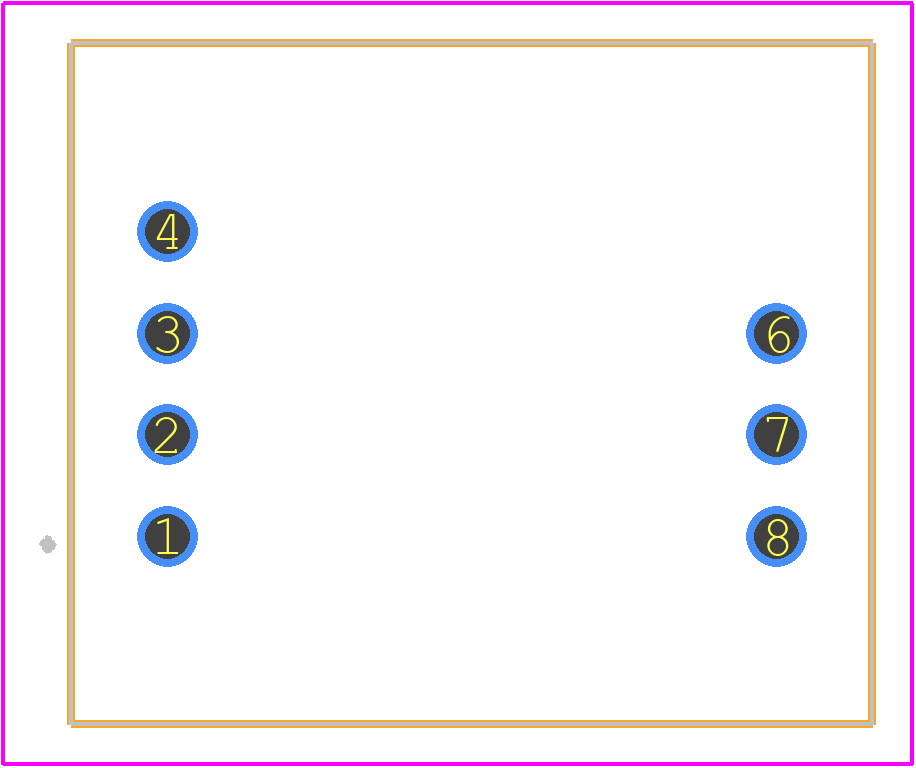

Use the download button to access the TD301D232H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD301,
or try a keyword search, such as Line Driver or Receivers
