- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA1308T/N2,112
- Part Number TDA1308T/N2,112
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO8
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA1308T/N2,112 Details
-
Manufacturer Part Number:
TDA1308T/N2,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
3.90 MM, PLASTIC, MS-012, SOT-96-1, SOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOT96-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
TDA1308T/N2,112 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA1308T involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF decoupling capacitor is recommended.
-
The maximum power dissipation of the TDA1308T is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
-
The TDA1308T is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking for high-temperature applications.
-
To troubleshoot issues with the TDA1308T, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check for proper decoupling and bypassing, and verify that the input and output signals are within the recommended specifications. Use an oscilloscope to check for oscillations or other anomalies.
Trust Checks
Community Provided
System Verified
Community Approved
TDA1308T/N2,112 Overview

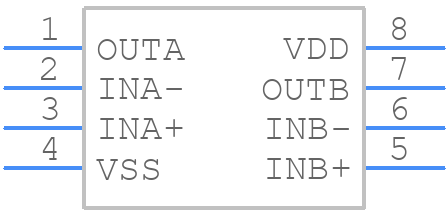

Use the download button to access the TDA1308T/N2,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA13,
or try a keyword search, such as Audio/Video Amplifiers
