- Part Number TDA1308T/N2
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOT96-1
- Released Date Aug 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA1308T/N2 Details
-
Manufacturer Part Number:
TDA1308T/N2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-G8
-
Number of Terminals:
8
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
TDA1308T/N2 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the TDA1308T/N2 can be found in the NXP application note AN10911, which provides guidelines for PCB design, component placement, and thermal management to ensure optimal performance and reliability.
-
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. NXP provides a component selection guide in the datasheet, and additional guidance can be found in the application note AN10911.
-
The TDA1308T/N2 has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
-
Common issues with the TDA1308T/N2 can often be resolved by checking the PCB layout, component values, and soldering quality. NXP provides a troubleshooting guide in the application note AN10911, which covers common issues and their solutions.
-
Yes, the TDA1308T/N2 is compatible with lead-free soldering processes. NXP ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the TDA1308T/N2 can be soldered using lead-free soldering techniques.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TDA1308T/N2 Overview

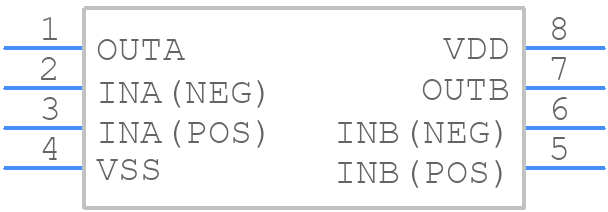

Use the download button to access the TDA1308T/N2 schematic symbol, PCB footprint, and 3D model.
