- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA1557Q/N2,112
- Part Number TDA1557Q/N2,112
- Manufacturer NXP
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

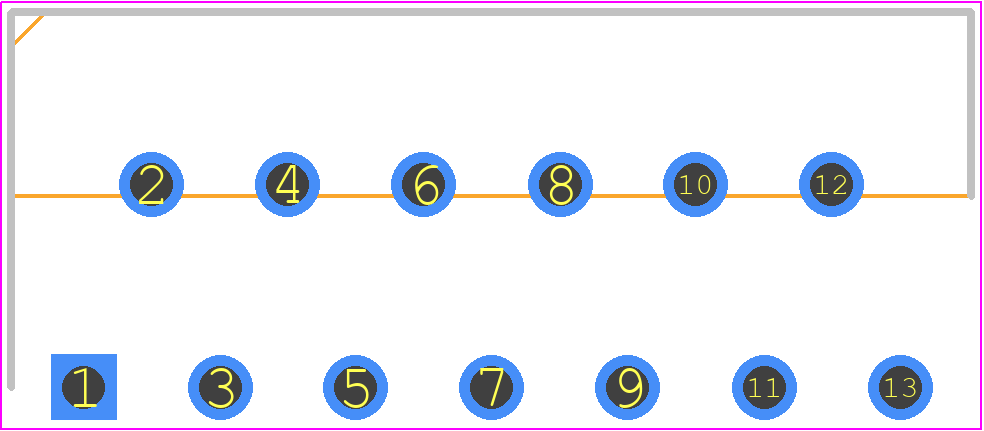

- Footprint Name Transistor Outline, Vertical - SOT141-6-ren2
- Released Date Aug 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA1557Q/N2,112 Details
-
Manufacturer Part Number:
TDA1557Q/N2,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SIP
-
Package Description:
POWER, PLASTIC, SOT-141R, SIP-13
-
Pin Count:
13
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
TDA1557Q/N2,112 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA1557Q/N2,112 should ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the thermal pad should be connected to a solid copper plane on the bottom layer of the PCB.
-
To ensure EMC, it is recommended to use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, ensure that the power supply lines are decoupled and filtered properly.
-
A decoupling capacitor of 10 uF to 22 uF should be placed as close as possible to the power pins of the TDA1557Q/N2,112. Additionally, a 100 nF to 220 nF capacitor can be used in parallel to filter out high-frequency noise.
-
A voltage supervisor or a reset IC can be used to monitor the power supply voltage and reset the system in case of an overvoltage or undervoltage condition. Additionally, a voltage regulator with overvoltage protection can be used to regulate the power supply voltage.
-
A heat sink can be attached to the package to improve thermal dissipation. The heat sink should be designed to have a thermal resistance of less than 10°C/W. Additionally, a thermal interface material (TIM) can be used to improve the thermal contact between the package and the heat sink.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TDA1557Q/N2,112 Overview

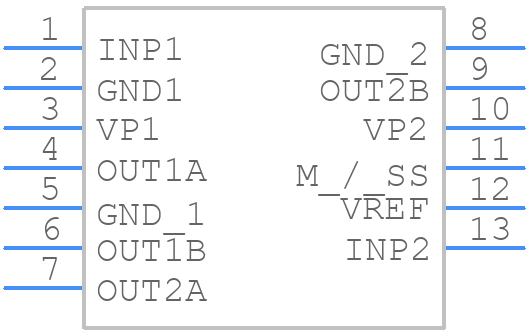

Use the download button to access the TDA1557Q/N2,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA15,
or try a keyword search, such as Audio/Video Amplifiers
