TDA1910HS - STMicroelectronics

Description: 10W AUDIO AMPLIFIER WITH MUTING 30V, 3.5A, -40 to 150°C Multiwatt11 Horizontal

Download TDA1910HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

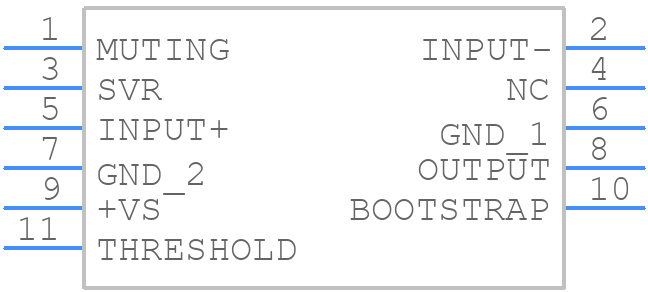

Symbol
TDA1910HS - STMicroelectronics - PCB symbol
click to zoom

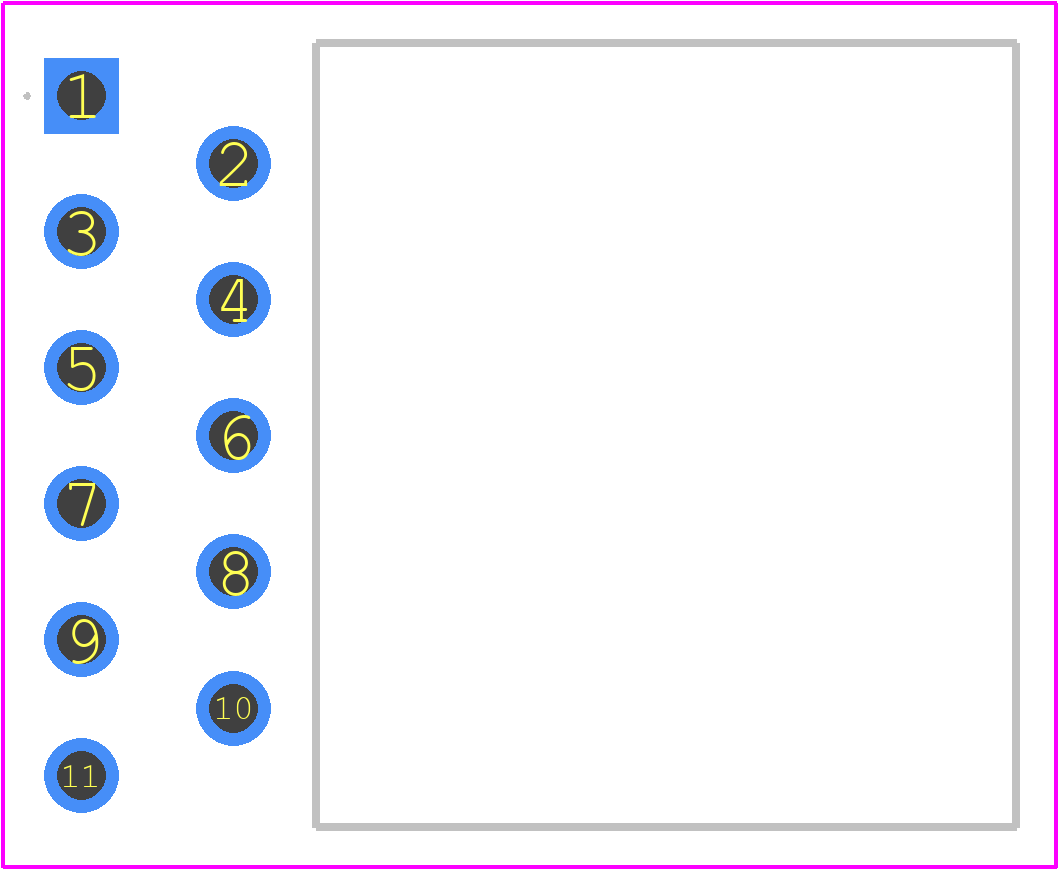

PCB Footprints
TDA1910HS - STMicroelectronics PCB footprint - Other - Other - TDA1910HS-3
click to zoom
3D Models
TDA1910HS - STMicroelectronics - 3D model - Other - TDA1910HS-3
click to zoom

TDA1910HS Details

  • Manufacturer Part Number:

    TDA1910HS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    120 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    17 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA1910HS Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The input capacitor should be selected based on the input voltage, current, and frequency. A minimum capacitance of 10uF is recommended, with a voltage rating of at least 1.5 times the maximum input voltage. X7R or X5R ceramic capacitors are suitable options.
  • The maximum junction temperature (Tj) for the TDA1910HS is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the TDA1910HS is designed to operate in high-temperature environments, but it's essential to ensure proper thermal management and heat dissipation to prevent overheating. The device can operate up to 125°C ambient temperature, but derating may be necessary above 85°C.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2861, which covers common issues such as overheating, output voltage instability, and input voltage undershoot. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and resolve issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA1910HS Overview

Use the download button to access the TDA1910HS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA19, or try a keyword search, such as Audio/Video Amplifiers
