- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2009
- Part Number TDA2009
- Manufacturer STMicroelectronics
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TDA2009-1
- Released Date Feb 1, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2009 Details
-
Manufacturer Part Number:
TDA2009
-
Part Life Cycle Code:
Active Unconfirmed
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
2
-
Consumer IC Type:
AUDIO AMPLIFIER
-
JESD-30 Code:
R-PZIP-T11
-
JESD-609 Code:
e0
-
Number of Functions:
2
-
Number of Terminals:
11
TDA2009 Frequently Asked Questions (FAQs)
-
The maximum power dissipation of TDA2009 is 2.5W, but it can be increased to 4W with proper heat sinking.
-
The gain setting depends on the input signal level and the desired output power. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner output signal, but may not provide enough power. Consult the datasheet and application notes for guidance on choosing the right gain setting.
-
The minimum supply voltage for TDA2009 is 6V, and the maximum supply voltage is 18V. Operating the device outside of this range can affect its performance and reliability.
-
To protect the TDA2009 from overheating, ensure good heat sinking, use a thermal pad or heat sink compound, and keep the device away from other heat sources. Monitor the device temperature and reduce the power dissipation if it exceeds the maximum rating.
-
Yes, the TDA2009 can be used as a headphone amplifier, but it may not provide enough power for high-impedance headphones. The device is designed for low-impedance loads, such as speakers, and may not provide the best performance with high-impedance headphones.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2009 Overview

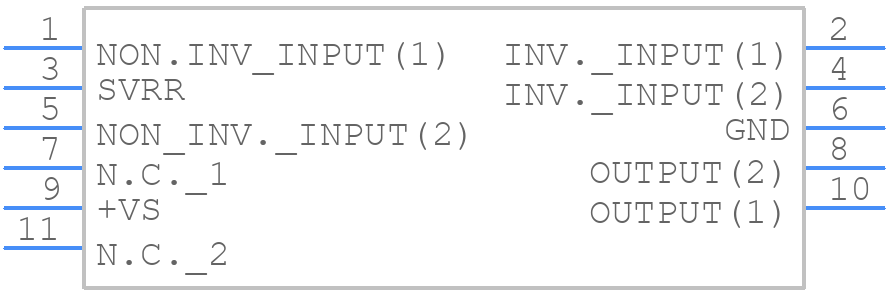

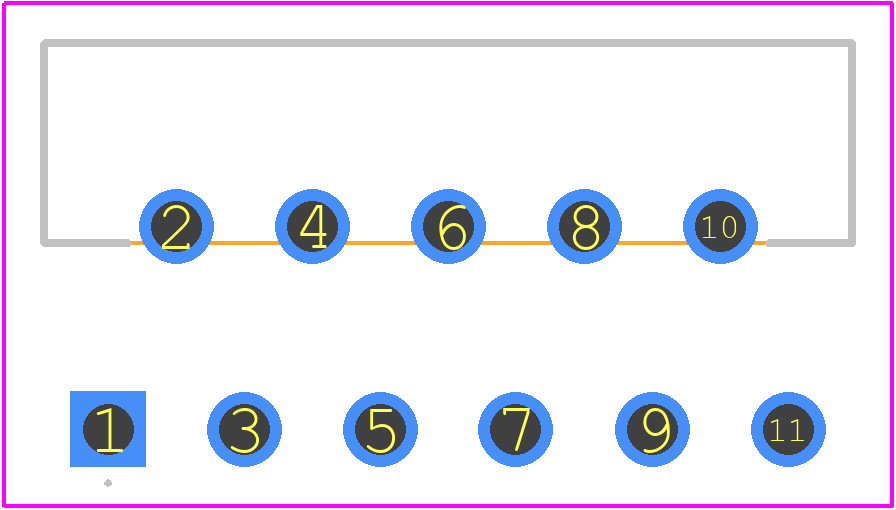

Use the download button to access the TDA2009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20,
or try a keyword search, such as Audio/Video Amplifiers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
