- Part Number TDA5100
- Manufacturer Infineon
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - P-TSSOP-16
- Released Date Aug 6, 2025
- Last Modified Date Aug 11, 2025 9:45 AM UTC
- Pinout / Pin List Click Here (Member Only)
TDA5100 Details
-
Manufacturer Part Number:
TDA5100
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
PLASTIC, TSSOP-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-G16
TDA5100 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA5100 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the antenna. Additionally, using a shielded enclosure and keeping the PCB away from other noise sources can help minimize EMI.
-
Optimizing the antenna design for the TDA5100 involves selecting the right antenna type and size, considering the operating frequency, and ensuring proper impedance matching. A good starting point is to use a quarter-wave monopole antenna with a 50-ohm impedance, and then fine-tune the design using simulation tools or empirical methods.
-
The maximum transmit power of the TDA5100 depends on the specific application and regulatory requirements. However, the device is typically designed to operate at a maximum transmit power of around 10 dBm (10 mW) to ensure compliance with regulatory requirements and to minimize interference.
-
To implement a low-power mode for the TDA5100, you can use the device's built-in power-down mode, which reduces the current consumption to around 1 μA. You can also use external circuitry to further reduce power consumption, such as using a voltage regulator with a low quiescent current.
-
To ensure EMC with the TDA5100, consider using a shielded enclosure, keeping the device away from other noise sources, using a common-mode choke to reduce emissions, and ensuring that the PCB layout is optimized for EMI reduction.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA5100 Overview

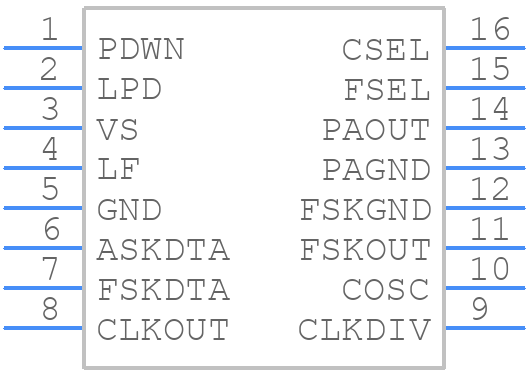

Use the download button to access the TDA5100 schematic symbol, PCB footprint, and 3D model.
