The recommended PCB layout for the TDA5235 involves placing the device close to the antenna, using a solid ground plane, and minimizing the length of the RF traces. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane.
To optimize the TDA5235's performance, you should consider factors such as the antenna design, PCB layout, and component selection. You should also ensure that the device is properly matched to the antenna and that the power supply is stable and noise-free. Additionally, you can use Infineon's development tools and simulation models to optimize the device's performance for your specific application.
The TDA5235 has a maximum junction temperature of 150°C. To ensure reliable operation, the device's thermal pad should be connected to a solid ground plane, and the PCB should be designed to dissipate heat efficiently. You should also ensure that the device is operated within its recommended operating temperature range of -40°C to 125°C.
To troubleshoot issues with the TDA5235, you should first consult the datasheet and application notes. You can also use Infineon's development tools and simulation models to identify and resolve issues. Additionally, you can contact Infineon's technical support team for assistance. Common issues include incorrect PCB layout, poor antenna design, and inadequate power supply decoupling.
The TDA5235 has built-in ESD protection, but it is still important to take precautions to prevent ESD damage during handling and assembly. You should use ESD-safe materials and equipment, and ensure that the device is handled and stored in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA5235 Overview

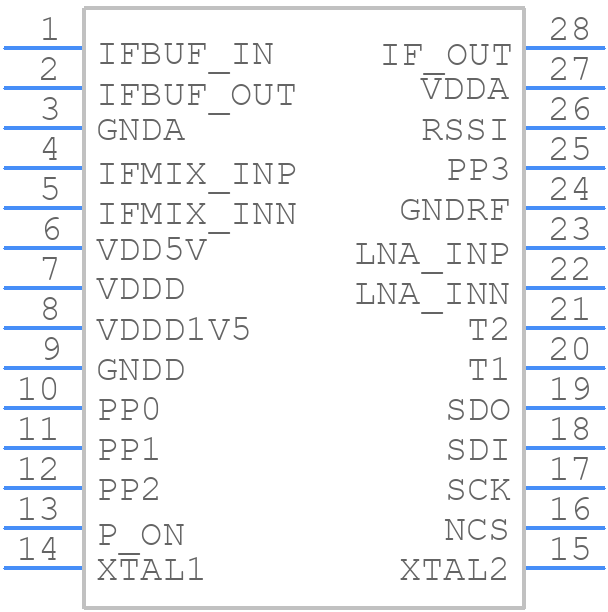

Use the download button to access the TDA5235 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA52,
or try a keyword search, such as Other Telecom ICs
