TDA5240XUMA1 - Infineon

Description: RF Receiver ASK/FSK 3.3V/5V Automotive 28-Pin TSSOP T/R

Download TDA5240XUMA1 Model

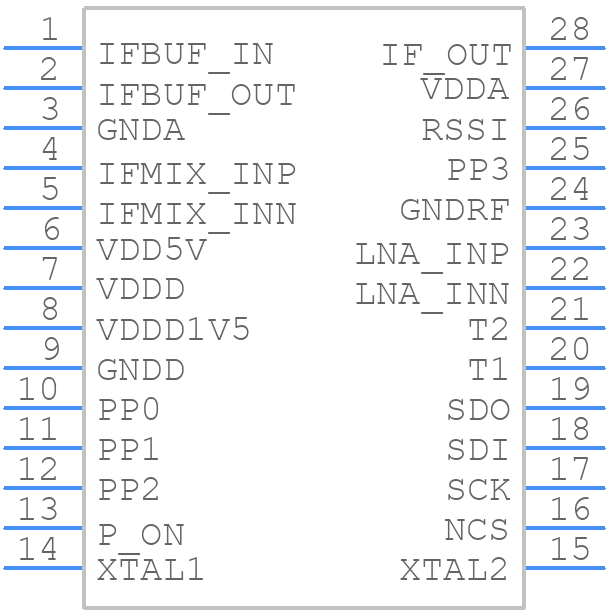

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDA5240XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-28
click to zoom
3D Models
TDA5240XUMA1 - Infineon  - 3D model - Small Outline Packages - PG-TSSOP-28
click to zoom

TDA5240XUMA1 Details

  • Manufacturer Part Number:

    TDA5240XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TDA5240XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN215, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Infineon recommends following the guidelines in the application note AN216 for EMC design considerations, including proper PCB layout, shielding, and filtering to minimize electromagnetic interference.
  • The TDA5240XUMA1 is specified to operate from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. Consult the datasheet and application notes for more information.
  • Infineon provides a troubleshooting guide in the application note AN217, which covers common issues, diagnostic techniques, and repair procedures for the TDA5240XUMA1.
  • Infineon provides guidelines for soldering and rework procedures in the application note AN218, which includes information on soldering temperatures, times, and techniques to ensure reliable assembly.
