TDA7110FHTMA1 - Infineon

Description: RF Transmitter CONTROL

Download TDA7110FHTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

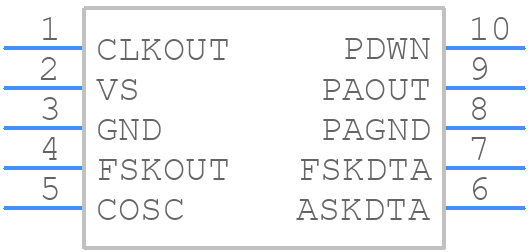

Symbol
TDA7110FHTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA7110FHTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TDA7110FHTMA1-+-+-
click to zoom
3D Models
TDA7110FHTMA1 - Infineon - 3D model - Small Outline Packages - TDA7110FHTMA1-+-+-
click to zoom

TDA7110FHTMA1 Details

  • Manufacturer Part Number:

    TDA7110FHTMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TDA7110FHTMA1 Frequently Asked Questions (FAQs)

  • A good thermal design should be used to ensure optimal heat dissipation. A minimum of 2oz copper thickness is recommended, and thermal vias should be placed under the device to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable for the input and output, and keep the device away from high-frequency sources. Additionally, use a common-mode choke and a ferrite bead to filter out electromagnetic interference.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • Use an oscilloscope to check the input and output waveforms, and verify that the device is properly powered and configured. Check for overheating, and ensure that the device is properly soldered and connected.
  • The TDA7110FHTMA1 is rated for operation up to 150°C, but it's recommended to keep the junction temperature below 125°C for reliable operation. Use a heat sink or thermal interface material to ensure efficient heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7110FHTMA1 Overview

Use the download button to access the TDA7110FHTMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA71, or try a keyword search, such as Other Telecom ICs
