Part Image

TDA7116F - Infineon

Description: RF Transmitter CONTROL

Download TDA7116F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

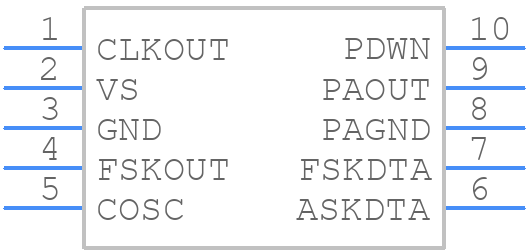

Symbol
TDA7116F - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA7116F - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-10-1
click to zoom
3D Models
TDA7116F - Infineon - 3D model - Small Outline Packages - PG-TSSOP-10-1
click to zoom

TDA7116F Details

  • Manufacturer Part Number:

    TDA7116F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.021 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TDA7116F Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7116F involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and placing it away from the device can help reduce EMI.
  • To optimize the TDA7116F for low power consumption, use a low-dropout linear regulator (LDO) for the power supply, minimize the input voltage, and use the device's built-in power-saving features such as the low-power mode and shutdown mode.
  • The maximum allowed voltage on the input pins of the TDA7116F is 6V. Exceeding this voltage can damage the device.
  • To troubleshoot issues with the TDA7116F, check the PCB layout for any errors or noise coupling, ensure that the input and output capacitors are properly sized, and verify that the device is operated within its recommended operating conditions.
  • The TDA7116F is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to use a heat sink or thermal management system to keep the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7116F Overview

Use the download button to access the TDA7116F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA71, or try a keyword search, such as Other Telecom ICs
