TDA7479D - STMicroelectronics

Description: Single chip RDS demodulator + filter

Download TDA7479D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

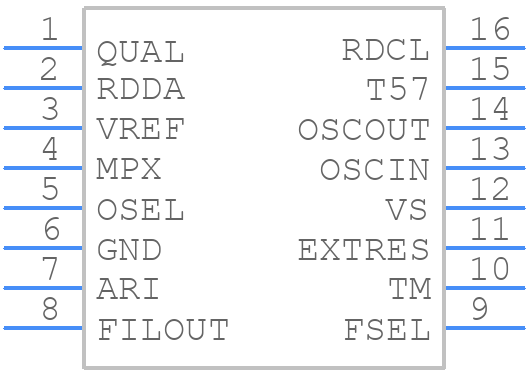

TDA7479D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7479D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 (Wide)
click to zoom
3D Models
TDA7479D - STMicroelectronics - 3D model - Small Outline Packages - SO16 (Wide)
click to zoom

TDA7479D Details

  • Manufacturer Part Number:

    TDA7479D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    11 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA7479D Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TDA7479D is to keep the input and output stages separate, with a ground plane in between to reduce noise and electromagnetic interference (EMI). Additionally, it's recommended to use a symmetrical layout for the audio channels to minimize channel-to-channel crosstalk.
  • To optimize the TDA7479D for low noise and distortion, ensure that the power supply is well-regulated and decoupled, use a low-ESR capacitor for the output filter, and keep the input impedance as low as possible. Additionally, use a high-quality audio-grade capacitor for the input coupling capacitor and ensure that the PCB layout is optimized for minimal noise and EMI.
  • The maximum power dissipation of the TDA7479D is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 70°C. However, it's recommended to derate the power dissipation to ensure reliable operation over the entire operating temperature range.
  • No, the TDA7479D is not suitable for use in a Class-D amplifier configuration. It's a Class-AB amplifier and is designed for linear audio applications. Using it in a Class-D configuration may result in poor audio quality, increased distortion, and reduced reliability.
  • To protect the TDA7479D from overvoltage and overcurrent, use a voltage regulator with overvoltage protection (OVP) and a current limiter or fuse in series with the power supply. Additionally, ensure that the output stage is protected from overcurrent by using a current-sensing resistor and a comparator to detect overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7479D Overview

Use the download button to access the TDA7479D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Other Consumer ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
