TDA7498 - STMicroelectronics

Description: Audio Amplifiers 100W +100W Dual BTL Class-D 4-Select dB

Download TDA7498 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

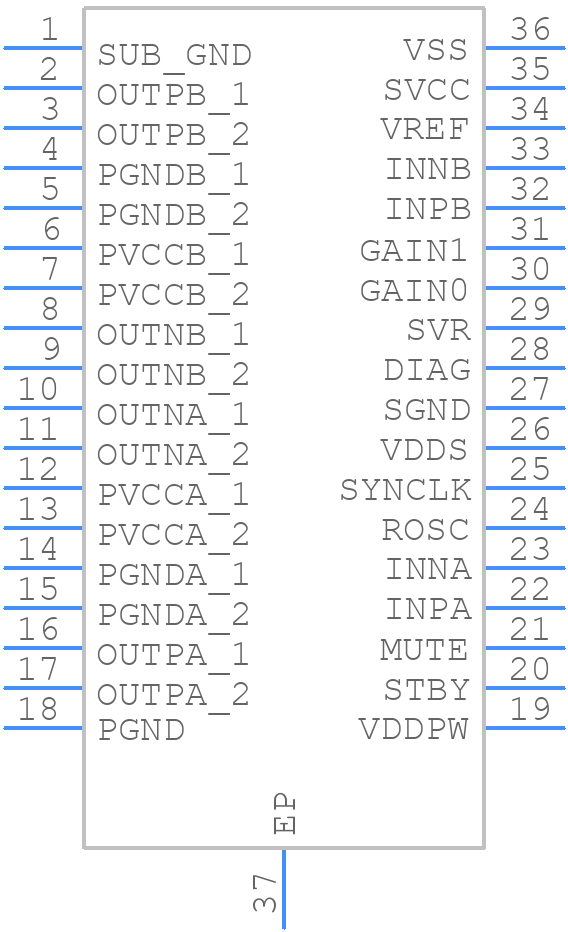

TDA7498 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7498 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPU
click to zoom
3D Models
TDA7498 - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPU
click to zoom

TDA7498 Details

  • Manufacturer Part Number:

    TDA7498

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    37.6 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max (Vsup):

    39 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA7498 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected as close as possible to the power supply pins (VP and VN) to ensure stable operation.
  • The gain of the TDA7498 can be configured by connecting a resistor (Rg) between the GAIN pin and the negative power supply (VN). The gain is calculated as 20 dB + (Rg/1.2 kΩ).
  • The maximum power dissipation of the TDA7498 is 30W, assuming a junction temperature of 150°C and a thermal resistance of 2.5°C/W. However, this value can be derated based on the ambient temperature and the thermal design of the system.
  • Yes, the TDA7498 can be used in a bridged configuration to increase the output power. In this configuration, two amplifiers are connected in anti-phase to drive a single load, effectively doubling the output power.
  • The TDA7498 has a built-in thermal shutdown protection that turns off the amplifier if the junction temperature exceeds 150°C. Additionally, a heatsink can be used to dissipate heat and reduce the risk of overheating.
