TDA8512J/N1,112 - NXP

Description: Amplifier IC 4-Channel (Quad) Class B DBS17P,26W x 1 @ 4Ohm; 13W x 4 @ 2Ohm,6V ~ 18V -40°C ~ 85°C (TA)

Download TDA8512J/N1,112 Model

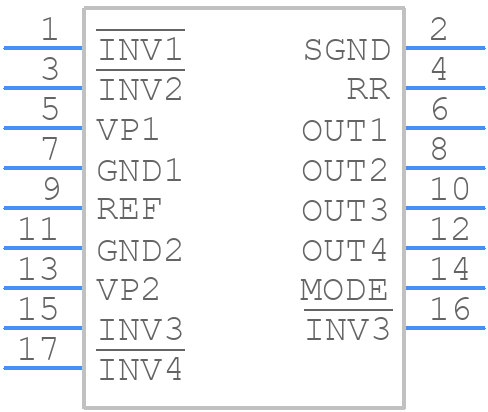

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

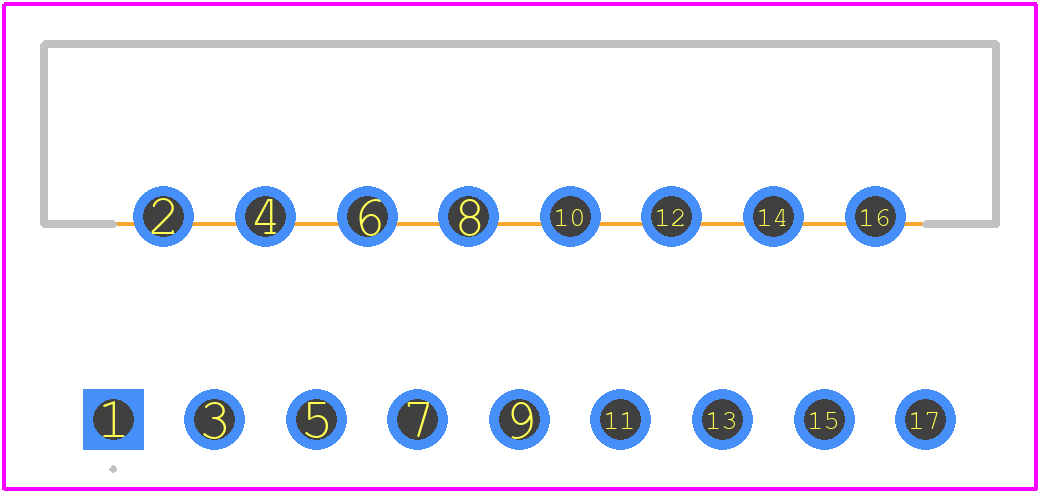

TDA8512J/N1,112 - NXP PCB footprint - Other - Other - SOT243-1_2025-3
click to zoom
3D Models
TDA8512J/N1,112 - NXP  - 3D model - Other - SOT243-1_2025-3
click to zoom

TDA8512J/N1,112 Details

  • Manufacturer Part Number:

    TDA8512J/N1,112

  • Brand Name:

    NXP Semiconductor

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    PLASTIC, DIL-BENT-SIL, 17 PIN

  • Pin Count:

    17

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T17

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    13 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TDA8512J/N1,112 Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if necessary. Refer to NXP's application note AN11544 for more information.
  • Follow NXP's EMC guidelines, use a shielded enclosure, and ensure proper grounding and decoupling. Also, consider using a common-mode choke and ferrite beads to reduce EMI.
  • Use a combination of ceramic and electrolytic capacitors, with a minimum of 10uF and 100nF capacitors close to the IC. Ensure the power supply is well-regulated and filtered.
  • Use NXP's Filter Design Tool or consult the datasheet's application information section. Consider the output impedance, load characteristics, and desired frequency response.
  • Implement thermal shutdown, overcurrent protection, and undervoltage lockout. Monitor the IC's temperature and current, and use external components if necessary.
