- Part Number TDA8950J/N1,112
- Manufacturer NXP
- Pin Count 23
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - DBS23P
- Released Date Jun 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA8950J/N1,112 Details
-
Manufacturer Part Number:
TDA8950J/N1,112
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZIP
-
Package Description:
PLASTIC, SOT411-1, DIL-BENT-SIL, 23 PIN
-
Pin Count:
23
-
Manufacturer Package Code:
SOT411-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
TDA8950J/N1,112 Frequently Asked Questions (FAQs)
-
A good thermal design should be used to ensure the device operates within the recommended temperature range. A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate to dissipate heat efficiently.
-
To ensure stability, a compensation network consisting of resistors and capacitors should be added between the output and the negative input. The values of these components depend on the specific application and can be calculated using the datasheet's stability analysis guidelines.
-
A decoupling capacitor of at least 10uF should be placed close to the device's power pins (VCC and GND) to filter out high-frequency noise and ensure stable operation. Additional decoupling capacitors can be added at the input and output stages for further noise reduction.
-
TVS (Transient Voltage Suppressor) diodes or ESD protection devices can be added to the input and output stages to protect the amplifier from overvoltage and ESD events. Additionally, a fuse or a PTC (Positive Temperature Coefficient) thermistor can be used to protect the device from overcurrent conditions.
-
The mute pin should be asserted at least 10ms before the amplifier is powered down to prevent audible clicks or pops. The recommended mute sequence is: assert mute, wait 10ms, power down the amplifier, and then remove the input signal.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA8950J/N1,112 Overview

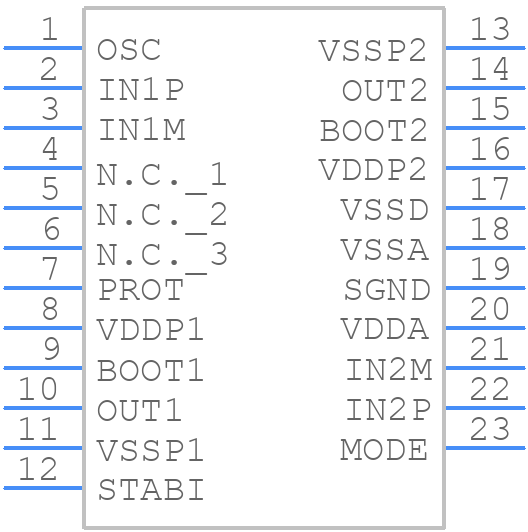

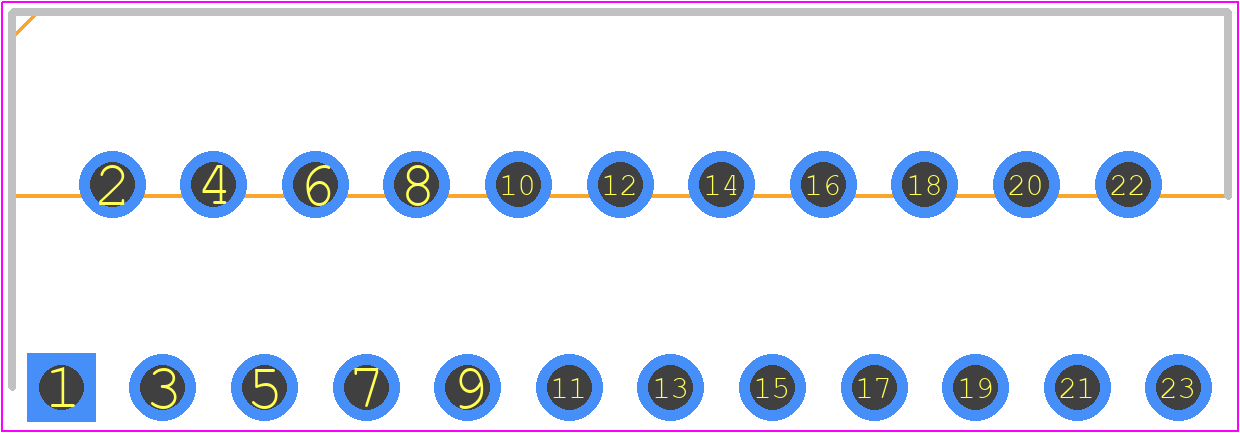

Use the download button to access the TDA8950J/N1,112 schematic symbol, PCB footprint, and 3D model.
