A good PCB layout for the TDC1000QPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal source to minimize noise. Additionally, using a low-ESR capacitor for power decoupling and placing it close to the device can help reduce noise.
To optimize the TDC1000QPWRQ1's performance for high-speed signals, ensure that the input signal is properly terminated, use a high-speed signal path with minimal capacitance, and adjust the device's internal delay compensation to match the signal's rise time. Additionally, using a high-frequency capable PCB material and minimizing the distance between the signal source and the device can help.
The recommended calibration procedure for the TDC1000QPWRQ1 involves applying a known input signal, measuring the output code, and adjusting the device's internal delay compensation and gain calibration registers to match the desired time-to-digital conversion characteristics. This process may need to be repeated at different temperatures and operating conditions to ensure optimal performance.
The TDC1000QPWRQ1 can be interfaced with a microcontroller or FPGA using a parallel or serial interface, such as SPI or I2C. The device's output code can be read using a digital input port, and the data can be processed and analyzed using the microcontroller or FPGA's built-in processing capabilities.
To ensure EMC when using the TDC1000QPWRQ1, ensure that the device is properly shielded, use a low-pass filter to reduce high-frequency noise, and minimize the distance between the device and the signal source. Additionally, using a common-mode choke or ferrite bead can help reduce electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC1000QPWRQ1 Overview

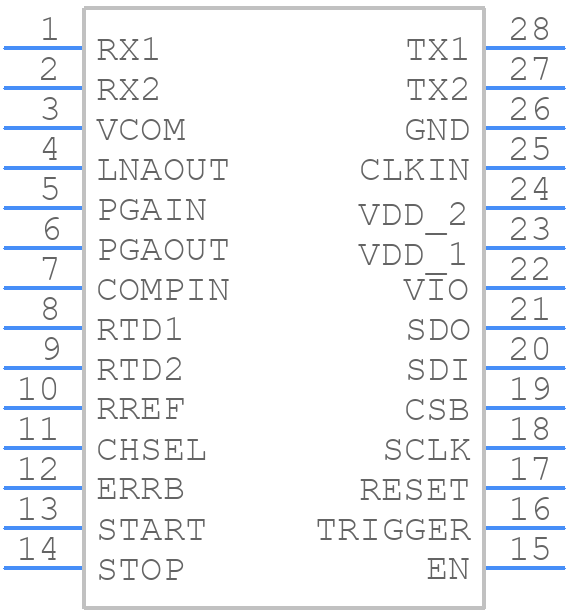

Use the download button to access the TDC1000QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC10,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
