Texas Instruments provides a recommended PCB layout in the TDC1011QPWQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Calibration of the TDC1011QPWQ1 involves adjusting the internal delay lines to compensate for process variations. Texas Instruments provides a calibration procedure in the datasheet, which involves measuring the delay between the START and STOP inputs and adjusting the CALIBRATION register accordingly.
The maximum distance that can be measured using the TDC1011QPWQ1 depends on the speed of light and the resolution of the TDC. With a resolution of 27.4 ps, the maximum distance that can be measured is approximately 4.1 meters. However, this distance can be extended using techniques such as multipath mitigation and averaging.
Handling multiple reflections and multipath effects requires advanced signal processing techniques, such as peak detection, thresholding, and filtering. Texas Instruments provides application notes and software development kits (SDKs) that include algorithms and examples for mitigating multipath effects and improving measurement accuracy.
The power consumption of the TDC1011QPWQ1 depends on the operating mode and frequency. In low-power mode, the device consumes approximately 1.5 mA. To optimize power consumption, designers can use power-saving features such as dynamic voltage scaling, clock gating, and sleep modes. Additionally, Texas Instruments provides power management guidelines and examples in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC1011QPWQ1 Overview

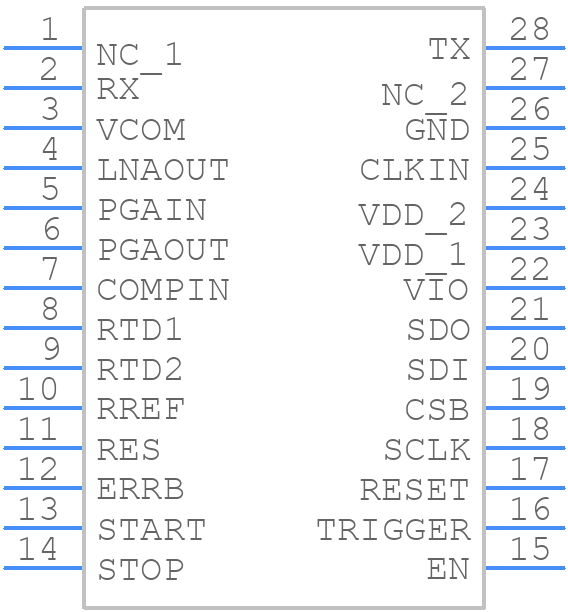

Use the download button to access the TDC1011QPWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC10,
or try a keyword search, such as Proximity Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
