A good PCB layout for the TDC1011QPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog power supply and another for the digital power supply.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers. It's also important to ensure the device is operated within the recommended temperature range and that the input signal is within the specified range.
The recommended input signal conditioning for the TDC1011QPWRQ1 involves using a low-pass filter to remove high-frequency noise and a voltage divider or attenuator to adjust the input signal to within the specified range. Additionally, it's recommended to use a buffer amplifier to isolate the input signal from the device.
To troubleshoot issues with the TDC1011QPWRQ1, start by verifying the input signal is within the specified range and that the device is properly calibrated. Check the PCB layout for any noise or interference issues and ensure the device is operated within the recommended temperature range. If issues persist, consult the datasheet and application notes for troubleshooting guides or contact Texas Instruments support.
The TDC1011QPWRQ1 has a recommended operating temperature range of -40°C to 125°C. To ensure the device operates within this range, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDC1011QPWRQ1 Overview

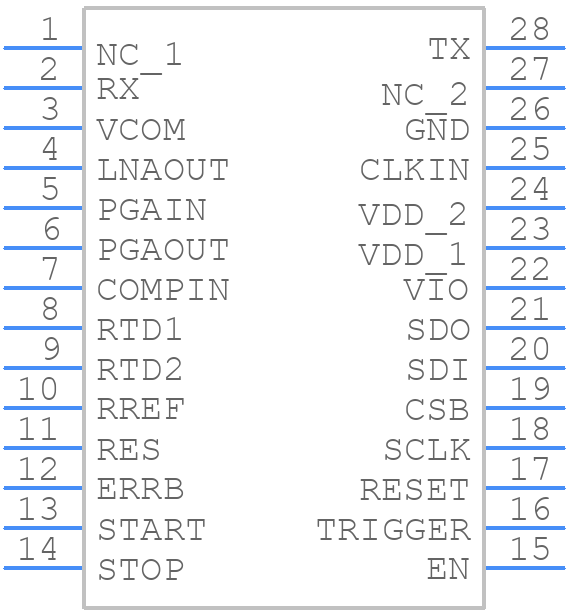

Use the download button to access the TDC1011QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDC10,
or try a keyword search, such as Proximity Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
