TDCR1060M footprint, schematic symbol and 3D model by Vishay

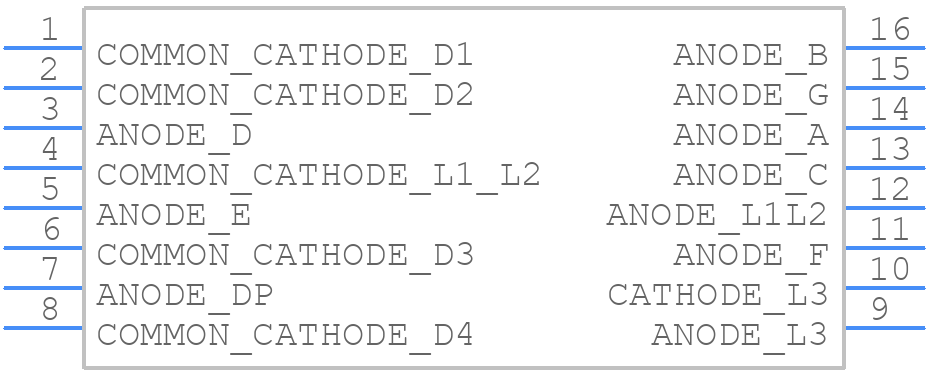

Symbol

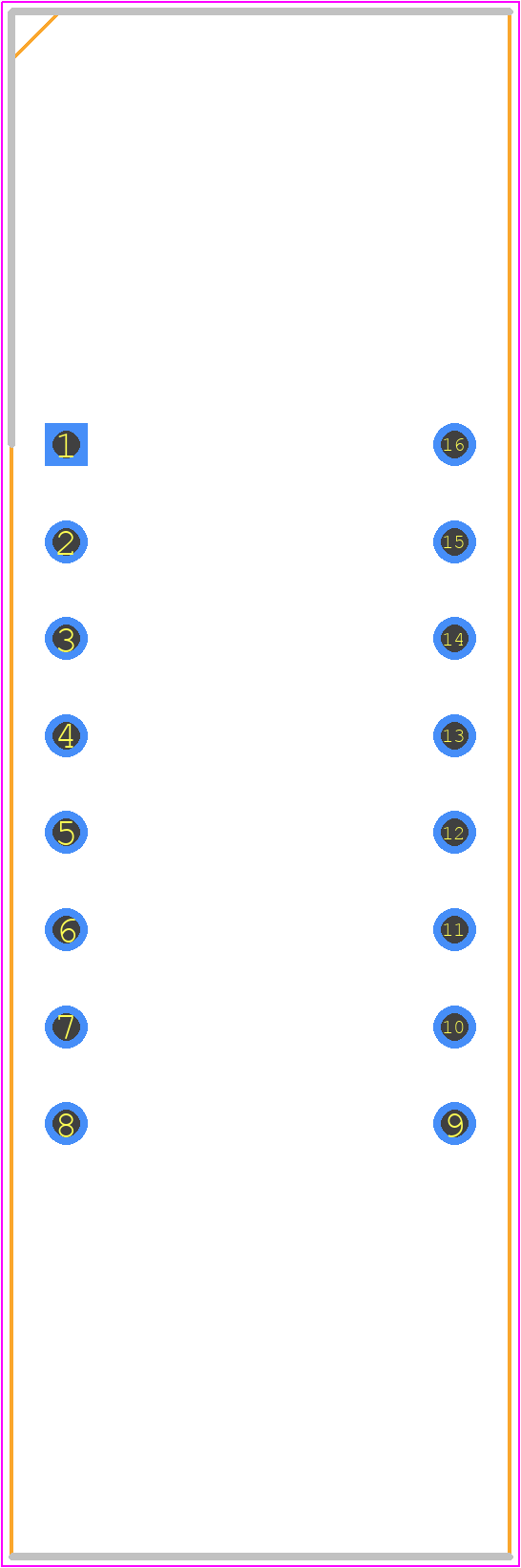

PCB Footprints

3D Models

TDCR1060M Details

A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the TDCR1060M. This will help to dissipate heat efficiently.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the thermal pad. Avoid applying excessive force or pressure during soldering, and ensure the PCB is clean and free of oxidation.
The maximum allowed voltage on the input pins of the TDCR1060M is 5.5V. Exceeding this voltage may damage the device.
To handle ESD protection, ensure that the PCB is designed with ESD protection devices, such as TVS diodes or ESD protection arrays, on the input lines. Additionally, handle the device by the body or use an anti-static wrist strap to prevent ESD damage during handling.
The recommended operating temperature range for the TDCR1060M is -40°C to 125°C. Operating the device outside of this range may affect its performance and reliability.

Expert Contribution

System Verified

Community Approved

Use the download button to access the TDCR1060M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TDCR1, or try a keyword search, such as LED Displays
