TDE1707CFPT - STMicroelectronics

Description: 0.5 A Intelligent Power Switch

Download TDE1707CFPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

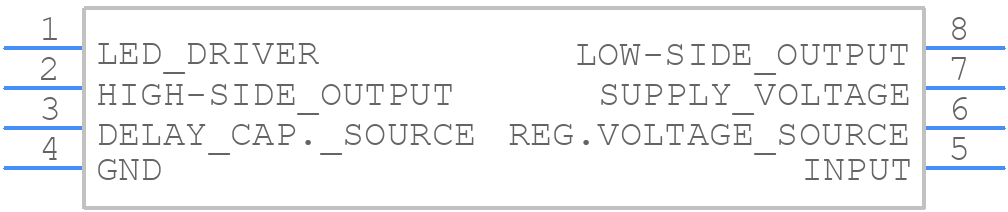

Symbol
TDE1707CFPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDE1707CFPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_1
click to zoom
3D Models
TDE1707CFPT - STMicroelectronics - 3D model - Small Outline Packages - SO 8_1
click to zoom

TDE1707CFPT Details

  • Manufacturer Part Number:

    TDE1707CFPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TDE1707CFPT Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to use a thermal pad on the bottom of the device.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider using a thermistor or thermocouple to monitor the temperature.
  • Handle the device in an ESD-protected environment, use ESD-protective packaging, and ground yourself before handling the device. Avoid touching the device's pins or leads, and use an anti-static wrist strap or mat.
  • Check the input voltage, output voltage, and current consumption. Verify that the device is properly configured and that the output capacitors are of the correct value and type. Also, check for any signs of overheating or physical damage.
  • Implement redundant systems, use error detection and correction mechanisms, and ensure that the device is operated within its recommended specifications. Also, consider using a watchdog timer and implementing a safe shutdown procedure in case of a fault.
