TDP0604IRNQR - Texas Instruments

Description: Display Interface IC DP++ 6-Gbps HDMI 2.0 redriver

Download TDP0604IRNQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

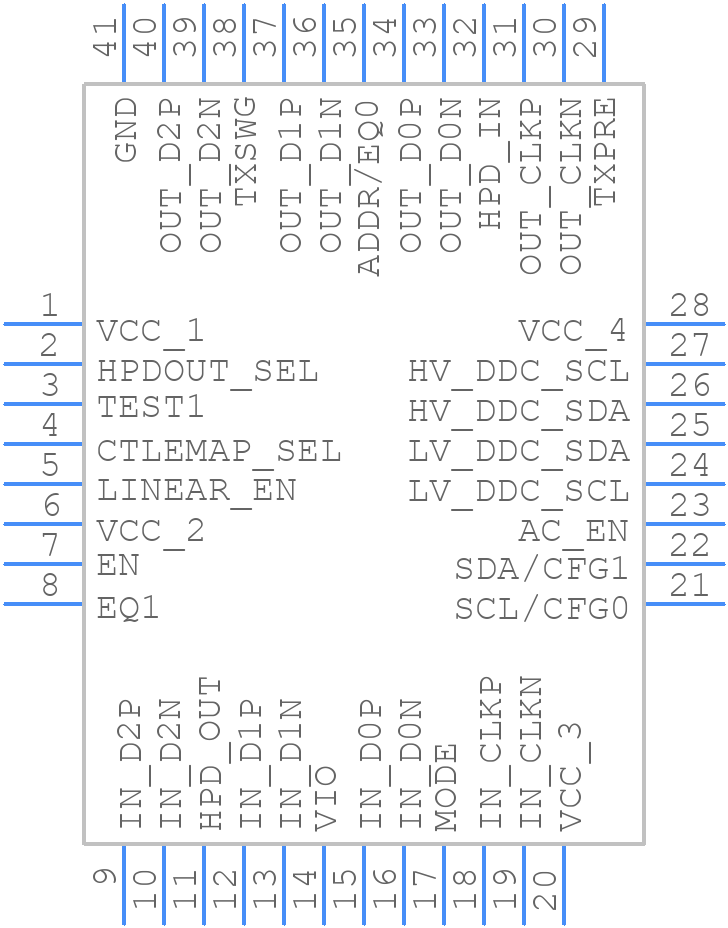

TDP0604IRNQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TDP0604IRNQR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNQ0040A_2022
click to zoom
3D Models
TDP0604IRNQR - Texas Instruments - 3D model - Quad Flat No-Lead - RNQ0040A_2022
click to zoom

TDP0604IRNQR Details

  • Manufacturer Part Number:

    TDP0604IRNQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,24X16,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4 V

  • Supply Voltage-Min (Vsup):

    -0.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

TDP0604IRNQR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TDP0604IRNQR is -40°C to 125°C.
  • To ensure reliability, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking and thermal management, and ensuring that the device operates within its specified temperature range.
  • Texas Instruments recommends a PCB layout with a solid copper plane underneath the device, and thermal vias connecting the top and bottom layers to dissipate heat efficiently.
  • Yes, the TDP0604IRNQR is designed to operate in humid environments, but it's essential to follow proper moisture sensitivity level (MSL) handling and storage procedures to prevent damage.
  • To calculate power dissipation, you need to consider the device's thermal resistance, operating temperature, and power consumption. You can use the thermal resistance values provided in the datasheet and calculate the power dissipation using the formula: Pd = (Tj - Ta) / Rθja, where Pd is the power dissipation, Tj is the junction temperature, Ta is the ambient temperature, and Rθja is the thermal resistance.
