Part Image

TDP142RNQT - Texas Instruments

Description: DisplayPort™ 8.1 Gbps Linear Redriver

Download TDP142RNQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

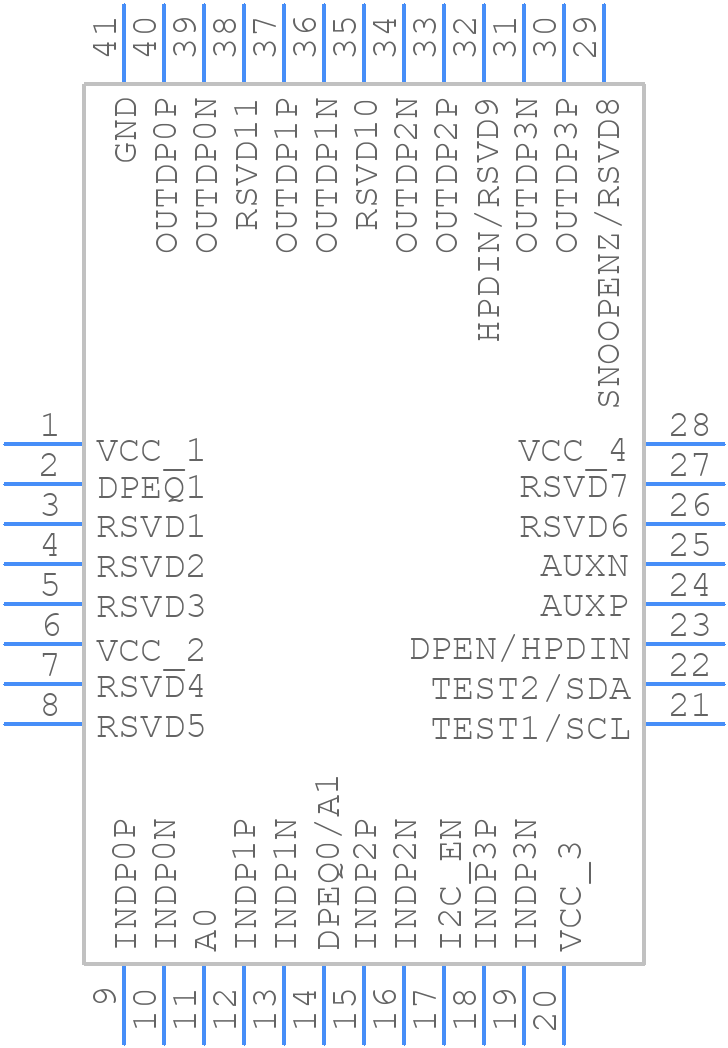

TDP142RNQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TDP142RNQT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNQ0040A
click to zoom
3D Models
TDP142RNQT - Texas Instruments - 3D model - Quad Flat No-Lead - RNQ0040A
click to zoom

TDP142RNQT Details

  • Manufacturer Part Number:

    TDP142RNQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-10-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TDP142RNQT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TDP142RNQT is -40°C to 125°C.
  • To ensure proper biasing, connect the VCC pin to a stable 1.8V to 5.5V power supply, and the GND pin to a solid ground. Additionally, decouple the power supply with a 0.1uF capacitor.
  • To minimize EMI and noise, use a 4-layer PCB with a solid ground plane, and place the TDP142RNQT near the signal source. Use short, direct traces, and avoid routing signals near the device's power pins.
  • To handle thermal dissipation, ensure good airflow around the device, and consider using a heat sink or thermal pad. The device's thermal pad should be connected to a solid ground or a thermal relief pattern.
  • The recommended input impedance for the TDP142RNQT is 50 ohms. This ensures optimal signal integrity and minimizes signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDP142RNQT Overview

Use the download button to access the TDP142RNQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDP14, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
