A good PCB layout for the TDSG5160 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, the TDSG5160 requires a stable voltage supply, and the input voltage should be within the recommended range. A voltage regulator or a voltage reference can be used to provide a stable voltage supply. Additionally, the input voltage should be decoupled with a capacitor to reduce noise.
The TDSG5160 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
The TDSG5160 is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. For such applications, it's recommended to use devices specifically designed and qualified for high-reliability or aerospace use.
To troubleshoot issues with the TDSG5160, start by verifying the power supply voltage, input signal integrity, and output loading. Check for any signs of overheating, and ensure the device is properly soldered and mounted. If issues persist, consult the datasheet and application notes or contact Vishay Intertechnologies' technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDSG5160 Overview

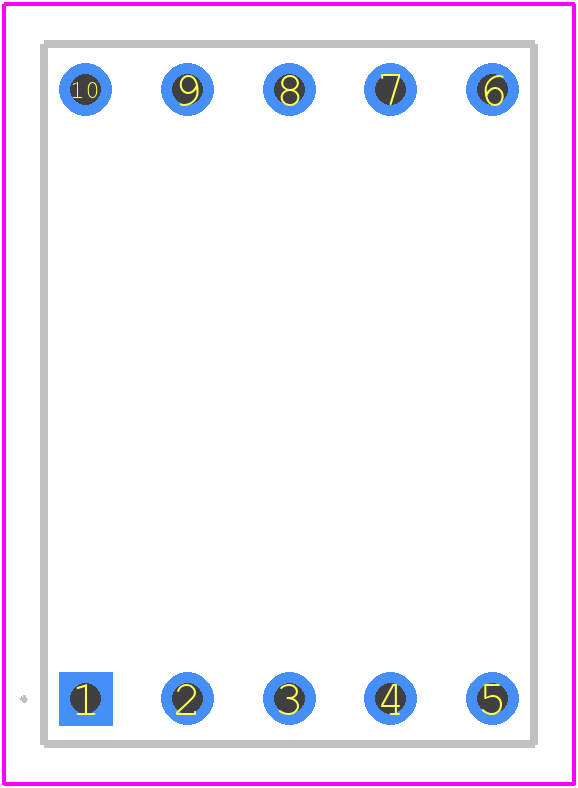

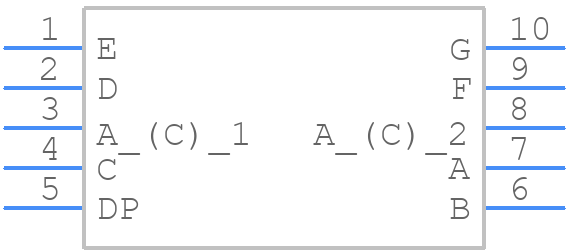

Use the download button to access the TDSG5160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSG5,
or try a keyword search, such as LED Displays
